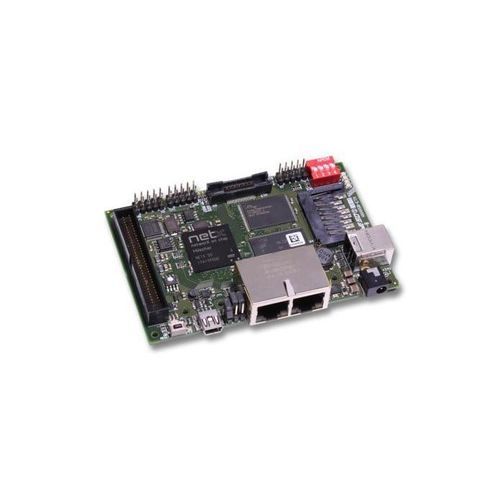

Evaluation board NXHX 50-ETM

Product description
The netX network controller with its 32-bit / 200-MHz ARM CPU delivers significant compute performance and extensive peripheral functions for single-chip solutions in cost-sensitive industrial applications. Network protocol stacks and the application share netX resources and run under a real-time operating system. The most straightforward and economical way to evaluate the entire system is the netX software development board. The board provides universal evaluation hardware, an integrated debug interface and is delivered with the HiTOP development environment from Hitex. You can load your application on the board, run it with protocol stacks and combine it, for example, with the licence-free rcX Real-Time Kernel. HiTOP with the integrated GNU compiler provides a comfortable development and debugging environment. For hardware development, the complete circuit diagram (except the debug interface) is provided. Via the board's JTAG interface you can connect an external JTAG debugger and develop or test with the same user interface and functionality as on the development board.

Highlights

• Development system with extensive peripheral functions
• Integrated debug interface
• One evaluation board for multiple industrial networks
• Cost-efficient and easy to use

Supported protocols

• VARAN Client
• Sercos Slave
• PROFINET IO-Device
• PROFIBUS DP Slave
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave
• DeviceNet Slave
• CC-Link Slave
• CANopen Slave

Order information
Product name | Part number | Brief description
NXHX 50-ETM | 7733.200 | Development board

Technical specifications

• CPU: 32-bit ARM, 200 MHz
• Execution: Real-time operating system (protocol stacks and application share netX resources)
• Integrated debug interface on board; JTAG connectivity for external debuggers
• Delivered with HiTOP development environment including integrated GNU compiler
• Compatible with the licence-free rcX Real-Time Kernel
• Complete circuit diagram provided except for the debug interface (for hardware development)
• Universal evaluation hardware with extensive peripheral functions
• Supports a wide range of industrial communication protocols (see Supported protocols)
• Part number: 7733.200
