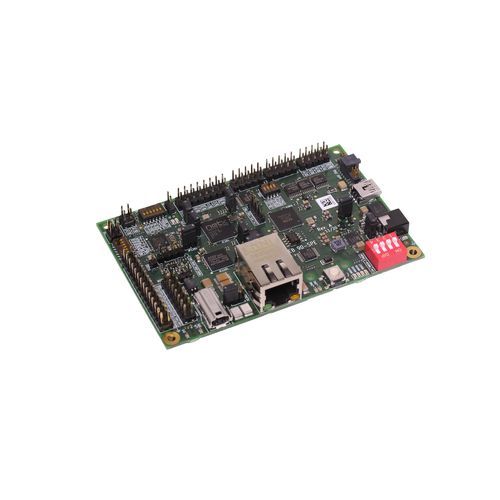

Redundant evaluation board NXEB 90-SPE

Product overview
Hilscher provides loadable firmware (LFW) solutions for the netX 90 enabling single-endpoint (1-port) communication. The NXEB 90-SPE evaluation board allows evaluation of the single-endpoint function and serves as a rapid-prototyping platform for relevant physical layers. The board is compatible with netX Studio CDT, a free Eclipse-based IDE, for configuration, development and debugging. Software examples for common industrial protocols are supplied as LFW and can be configured and loaded by the user.

Highlights

• Evaluation board for Single Pair Ethernet (SPE)
• Software examples: single-endpoint communication provided as LFW
• Hilscher SPE Media Switch available as counterpart for testing

Order information
Product name | Part number | Brief description
NXEB 90-SPE | 7832.300 | Evaluation board

Protocols supported

• PROFINET IO-Device
• PROFIBUS DP Slave
• EtherNet/IP Adapter
• EtherCAT Slave
• DeviceNet Slave
• CANopen Slave

Technical specifications

• Product type: Evaluation board for Single Pair Ethernet (SPE)
• Model designation: NXEB 90-SPE
• Part number: 7832.300
• Product lifecycle state: Active
• Purpose: Evaluate single-endpoint (1-port) function and rapid prototyping for key physical layers
• Firmware concept: Loadable Firmware (LFW) for communication stacks; software examples provided as LFW
• Development environment: Compatible with netX Studio CDT (Eclipse-based IDE) for configuration, development and debugging
• Included examples: Protocol examples such as PROFINET IO-Device and EtherNet/IP Adapter provided as LFW
• Test hardware: Hilscher SPE Media Switch available as a counterpart for testing
• Documentation: Device description and application note available

Downloads & documentation

• NXEB 90-SPE: device description (datasheet)
• netX 90: datasheet
• NXHX and NSHIELD datasheets
• Application note: Single Pair Ethernet with netX 90
