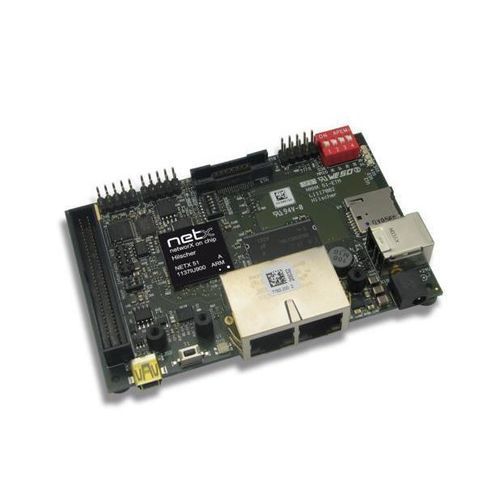

Evaluation board NXHX 51-ETM

Product type
Development board for netX-based evaluation and software/hardware integration (part number 7763.200).

Overview
The netX network controller with its 32-bit ARM core provides high processing performance and comprehensive peripheral functions for single-chip solutions in cost-sensitive applications. Network protocol stacks and the user application share netX resources and run in a Real-Time operating system.

Development and evaluation
The netX software development board is the simplest and most economical option to evaluate the complete system. The board includes universal hardware, an integrated debug interface, and is supplied with the HiTOP development environment by Hitex. You can load and run your application on the board, use Hilscher protocol stacks, and combine them with the licence-free rcX Real-Time Kernel. HiTOP includes an integrated GNU compiler and provides a full development and debug environment. The complete circuit diagram (except the debug interface) is provided as a basis for hardware development. The board’s JTAG interface allows connection of external debuggers (e.g., Hitex Tantino) to develop and test with the same user interface and functionality.

Highlights

• Evaluation/development system with extensive peripheral functions
• Integrated on-board debug interface
• Single evaluation board supporting multiple industrial networks
• Cost-efficient and complete evaluation platform

Supported protocols

• CC-Link IE Field Basic Slave
• SmartWire-DT Master
• Sercos Slave
• PROFINET IO-Device
• PROFIBUS DP Slave
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave
• DeviceNet Slave
• CC-Link Slave
• CANopen Slave

Order information (excerpt)
Product name | Part number | Brief description
NXHX 51-ETM | 7763.200 | Development board

Technical specifications

• Controller: netX network controller with 32-bit ARM core
• Real-Time OS: netX RTOS environment enabling concurrent protocol and application execution
• Peripherals: extensive peripheral functions for single-chip solutions
• Debug: integrated on-board debug interface; JTAG interface for external debuggers
• Development environment: supplied with HiTOP (includes integrated GNU compiler)
• Real-Time Kernel compatibility: compatible with licence-free rcX Real-Time Kernel
• Documentation: complete circuit diagram provided for hardware development (excludes debug interface)
• Part number: 7763.200
• Product lifecycle status: Active / Mature
• Primary use: software and hardware evaluation platform for netX-based multiprotocol communication
• Supported network roles: supports master/slave/adapter roles across multiple industrial protocols (see Supported protocols)
