Vertical drilling machine CRDM 3050X12/1 NG
radial

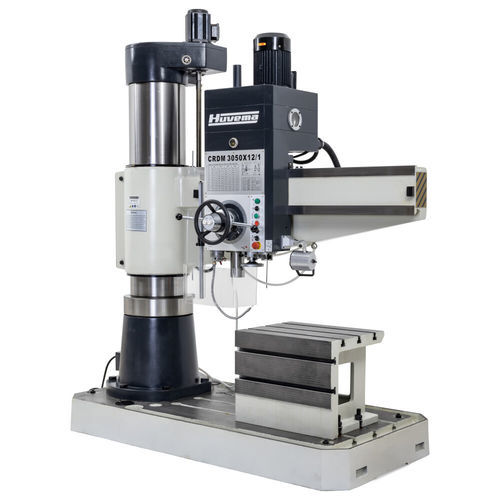

Vertical drilling machine - CRDM 3050X12/1 NG - Huvema B.V. - radial
Vertical drilling machine - CRDM 3050X12/1 NG - Huvema B.V. - radial
Vertical drilling machine - CRDM 3050X12/1 NG - Huvema B.V. - radial - image - 2
Vertical drilling machine - CRDM 3050X12/1 NG - Huvema B.V. - radial - image - 3
Vertical drilling machine - CRDM 3050X12/1 NG - Huvema B.V. - radial - image - 4
Vertical drilling machine - CRDM 3050X12/1 NG - Huvema B.V. - radial - image - 5
Vertical drilling machine - CRDM 3050X12/1 NG - Huvema B.V. - radial - image - 6
Vertical drilling machine - CRDM 3050X12/1 NG - Huvema B.V. - radial - image - 7
Vertical drilling machine - CRDM 3050X12/1 NG - Huvema B.V. - radial - image - 8
Vertical drilling machine - CRDM 3050X12/1 NG - Huvema B.V. - radial - image - 9
Vertical drilling machine - CRDM 3050X12/1 NG - Huvema B.V. - radial - image - 10
Vertical drilling machine - CRDM 3050X12/1 NG - Huvema B.V. - radial - image - 11
Add to favorites
Compare this product

Characteristics

Structure
vertical, radial
Drilling diameter

50 mm
(1.97 in)

Power

4,000 W

Rotational speed

Min.: 25 rpm
(157.1 rad.min-1)

Max.: 2,000 rpm
(12,566.4 rad.min-1)

Weight

3,000 kg
(6,614 lb)

Description

Manufacturer specifications
  • Model: CRDM 3050X12/1 NG
  • Brand: Huvema
  • Drilling capacity: 50 mm
  • Distance spindle - column: 1250 mm
  • Spindle taper: MK 5
  • Engine power: 4 kW
  • Voltage: 400 V
  • Drilling depth: 315 mm
  • Speed range: 25 - 2000 rpm
  • Max. distance spindle - table: 350 - 1250 mm
  • Feed rate: 0.04 - 3.2 mm/min
  • Head rotation: 360°
  • Coolant pump power: 0.125 kW
  • Number of power supplies: 16
  • Weight: 3000 kg
  • Number of steps: 16
  • Packaging dimensions: 2180 x 1000 x 2835 mm


Transport
  • Article number: 30116
  • Barcode (EAN): 8718242585330
  • Product group: Industrial machines
  • Volumetric weight: 30000
  • Net weight: 3000
  • HS code: 84596990


Technical specifications
  • Model: CRDM 3050X12/1 NG
  • EAN: 8718242585330
  • Brand: Huvema
  • Main use: Radial drilling for metalworking
