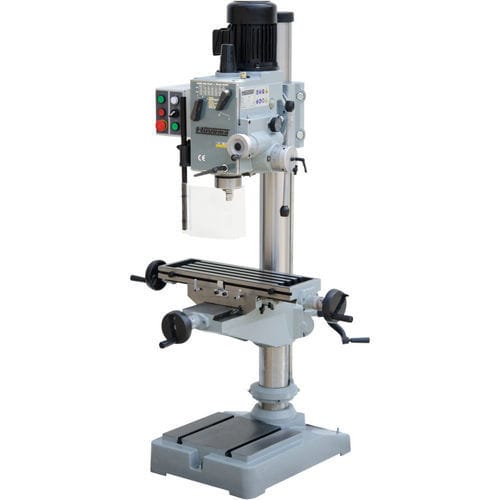

Vertical drilling machine HU 30 GC-4 Topline
table type

Vertical drilling machine - HU 30 GC-4 Topline - Huvema B.V. - table type
Vertical drilling machine - HU 30 GC-4 Topline - Huvema B.V. - table type
Vertical drilling machine - HU 30 GC-4 Topline - Huvema B.V. - table type - image - 2
Vertical drilling machine - HU 30 GC-4 Topline - Huvema B.V. - table type - image - 3
Vertical drilling machine - HU 30 GC-4 Topline - Huvema B.V. - table type - image - 4
Vertical drilling machine - HU 30 GC-4 Topline - Huvema B.V. - table type - image - 5
Add to favorites
Compare this product

Characteristics

Structure
vertical, table type
Power

1,000 W

Rotational speed

Max.: 2,500 rpm
(15,708 rad.min-1)

Min.: 50 rpm
(314.2 rad.min-1)

Weight

280 kg
(617 lb)

Description

Overview
Universal gear-wheel-driven industrial drilling machine designed for workshop and maintenance applications. Supplied with a cross table featuring vertical adjustment and equipped with a tiltable fine-feed head to support precise drilling and drilling-milling operations.

Features
  • Gear-wheel-driven transmission for reliable torque delivery
  • Cross table included with vertical adjustment
  • Fine-feed head, tiltable forward/reverse for angled drilling
  • Suitable for industrial drilling and drilling-milling operations
  • Designed for workshop and maintenance environments

Technical specifications
  • Drive type: gear wheel driven
  • Table: cross table included; vertical adjustment possible
  • Head: fine-feed head, tiltable forward/reverse
  • Intended use: industrial drilling / drilling-milling operations
  • Product reference: 11122
