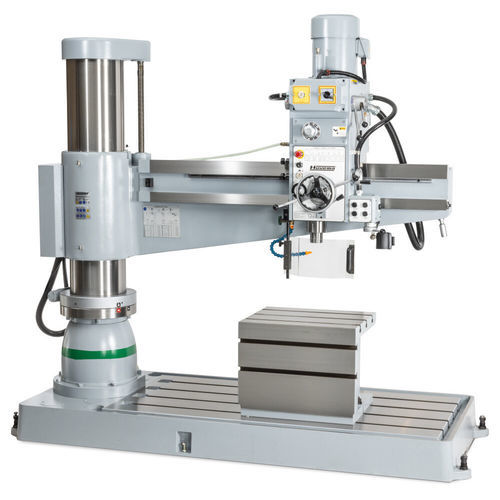

Column type drilling machine CRDM 3050x1250 Topline
radial

Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial - image - 2
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial - image - 3
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial - image - 4
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial - image - 5
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial - image - 6
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial - image - 7
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial - image - 8
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial - image - 9
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial - image - 10
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial - image - 11
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial - image - 12
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial - image - 13
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial - image - 14
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial - image - 15
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial - image - 16
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial - image - 17
Column type drilling machine - CRDM 3050x1250 Topline - Huvema B.V. - radial - image - 18
Add to favorites
Compare this product

Characteristics

Structure
column type, radial
Drilling diameter

50 mm
(1.97 in)

Power

3,500 W

Rotational speed

Max.: 1,450 rpm
(9,110.6 rad.min-1)

Min.: 56 rpm
(351.9 rad.min-1)

Weight

2,300 kg
(5,071 lb)

Description

Product description
Radial drilling machine CRDM 3050x1250 Topline with hydraulic clamping and IC timer. The IC timer allows releasing the arm for vertical movement and stopping it with a single button. When changing the tool, the spindle can remain in its current position, reducing setup time.

Properties:
  • Gear wheels running in an oil bath
  • Safety device to prevent the arm from dropping abruptly
  • Precision-ground gear wheels
  • Integrated cooling system
  • Automatic tool ejector
  • Spindle–column distance: 360–1250 mm

Characteristics / technical specifications:
  • Article number: 30108
  • Model: CRDM 3050x1250 Topline
  • Brand: Huvema
  • EAN: 8718242079068
  • Clamping system: hydraulic
  • IC timer: allows releasing and stopping the arm with a single button
  • Spindle–column distance: 360–1250 mm
  • Drive gears: oil bath, precision-ground
  • Cooling system: integrated
  • Tool ejector: automatic
  • Stock status: Directly available
  • Price: On request
