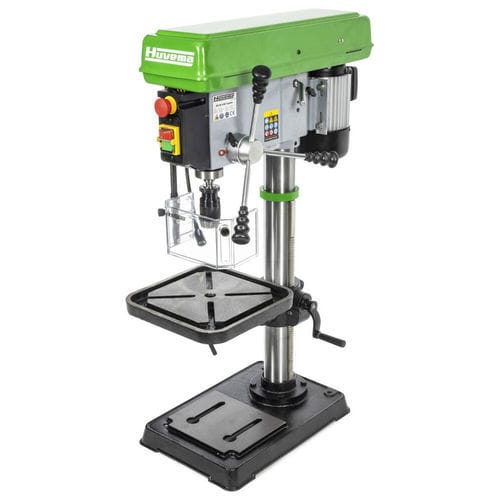

Vertical drilling machine HU 20-4 NG Topline

column typebenchfor steel

Overview
The HU 20-4 NG Topline is a bench/column drilling machine with a 20 mm drilling capacity, V-belt transmission and 400 V power supply, designed for professional workshop and industrial bench use.

Applications

• General metalworking and fabrication
• Maintenance and repair workshops
• Toolrooms and small-series production
• Technical training and vocational workshops

Key features

• 20 mm maximum drill diameter
• V-belt (keilriemen) transmission with wide speed range
• Quick-release chuck (up to 16 mm) and MT2 spindle acceptance
• Adjustable worktable: horizontal/vertical rotation and swivel around the column
• Integrated safety features: protective cover and emergency stop
• Work lamp and easy-to-adjust drilling depth

Technical specifications

• Brand: Huvema
• Model: HU 20-4 NG Topline
• Max. drilling diameter: 20 mm
• Spindle taper: MT2
• Motor power: 1.1 kW
• Voltage: 400 V
• Spindle travel (quill): 80 mm
• Distance spindle–column: 215 mm
• Max. distance spindle–table: 350 mm
• Max. distance spindle–base: 600 mm
• Column diameter: 80 mm
• Table dimensions: 320 x 320 mm
• T-slots: 4 x M14
• Speed range: 160–3000 rpm (16 speeds)
• Article ID: 11254

Included accessories

• Quick-change drill chuck (up to 16 mm)
• Drill bits and drive pin
• MT2 arbor
• Work lamp
• Protective cover and emergency stop

Compliance & availability
CE-compliant machine, delivered with required safety devices. Direct availability; contact supplier for lead time and installation options.
