Vertical drilling machine HU 40 G-4 Vario
column typerotating tablevariable speed

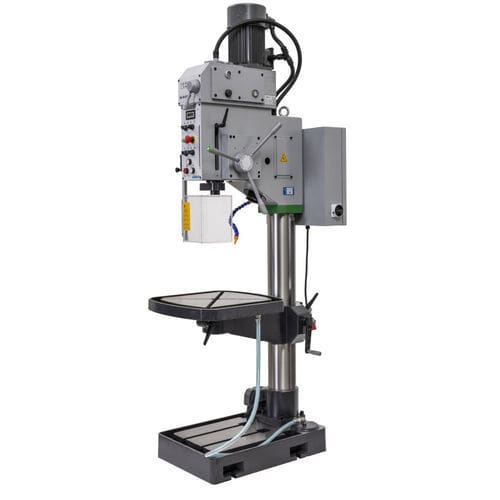

Vertical drilling machine - HU 40 G-4 Vario - Huvema B.V. - column type / rotating table / variable speed
Vertical drilling machine - HU 40 G-4 Vario - Huvema B.V. - column type / rotating table / variable speed
Vertical drilling machine - HU 40 G-4 Vario - Huvema B.V. - column type / rotating table / variable speed - image - 2
Vertical drilling machine - HU 40 G-4 Vario - Huvema B.V. - column type / rotating table / variable speed - image - 3
Vertical drilling machine - HU 40 G-4 Vario - Huvema B.V. - column type / rotating table / variable speed - image - 4
Vertical drilling machine - HU 40 G-4 Vario - Huvema B.V. - column type / rotating table / variable speed - image - 5
Vertical drilling machine - HU 40 G-4 Vario - Huvema B.V. - column type / rotating table / variable speed - image - 6
Vertical drilling machine - HU 40 G-4 Vario - Huvema B.V. - column type / rotating table / variable speed - image - 7
Vertical drilling machine - HU 40 G-4 Vario - Huvema B.V. - column type / rotating table / variable speed - image - 8
Vertical drilling machine - HU 40 G-4 Vario - Huvema B.V. - column type / rotating table / variable speed - image - 9
Vertical drilling machine - HU 40 G-4 Vario - Huvema B.V. - column type / rotating table / variable speed - image - 10
Vertical drilling machine - HU 40 G-4 Vario - Huvema B.V. - column type / rotating table / variable speed - image - 11
Vertical drilling machine - HU 40 G-4 Vario - Huvema B.V. - column type / rotating table / variable speed - image - 12
Vertical drilling machine - HU 40 G-4 Vario - Huvema B.V. - column type / rotating table / variable speed - image - 13
Add to favorites
Compare this product

Characteristics

Structure
vertical, column type, rotating table
Other characteristics
M24, variable speed, electric, heavy-duty
Drilling diameter

40 mm
(1.57 in)

Power

1,500 W

Rotational speed

Max.: 1,800 rpm
(11,309.7 rad.min-1)

Min.: 30 rpm
(188.5 rad.min-1)

Weight

460 kg
(1,014 lb)

Description

Description
Heavy-duty gear-driven column drill from Huvema designed for drilling, reaming and tapping in industrial environments. Maximum drilling capacity: 40 mm. The HU 40 G Vario features steplessly variable speed control for precise machining and is intended for production, maintenance and repair operations in machine shops and factories.

Features
  • Worklight
  • Variable speed (stepless)
  • Protective cover
  • Cooling
  • Automatic feed
  • Spindle reversible (left/right)
  • Table rotatable
  • Table fixation
  • With automatic tapping device


Included with the machine
  • Drill head (Art. 20112240)
  • Drill bit MK4 (Art. 20112265)
  • Adapter MK4-3 (Art. 20112261)
  • Adapter MK4-2 (Art. 20112262)
  • Drive pin
  • Oil pump


Technical specifications
  • Drilling capacity: 40 mm
  • Distance spindle - column: 350 mm
  • Spindle taper: MT 4
  • Engine power: 1.5 kW
  • Voltage: 400 V
  • Drilling depth: 180 mm
  • Speed range: 30–1800 rpm
  • Column diameter: 150 mm
  • Table dimensions: 560 x 560 mm
  • Number of speeds: 2
  • Variable speed: yes
  • Drive: Gearwheel
  • Weight: 460 kg
  • Tap capacity: M24
  • Packaging dimensions: 730 x 560 x 2220 mm
