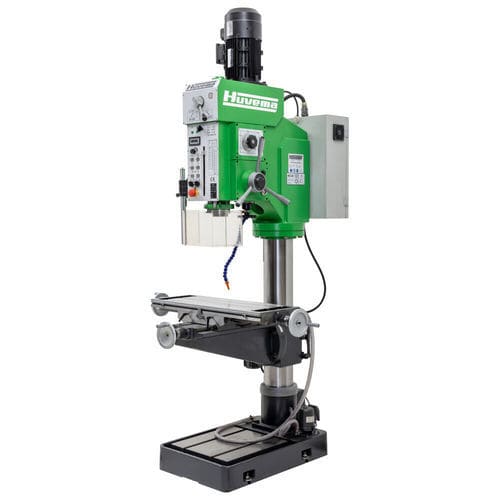

Column type drilling machine HU 40 GCS-4 Vario
table typefor steelvariable speed

Column type drilling machine - HU 40 GCS-4 Vario - Huvema B.V. - table type / for steel / variable speed
Column type drilling machine - HU 40 GCS-4 Vario - Huvema B.V. - table type / for steel / variable speed
Column type drilling machine - HU 40 GCS-4 Vario - Huvema B.V. - table type / for steel / variable speed - image - 2
Column type drilling machine - HU 40 GCS-4 Vario - Huvema B.V. - table type / for steel / variable speed - image - 3
Column type drilling machine - HU 40 GCS-4 Vario - Huvema B.V. - table type / for steel / variable speed - image - 4
Column type drilling machine - HU 40 GCS-4 Vario - Huvema B.V. - table type / for steel / variable speed - image - 5
Column type drilling machine - HU 40 GCS-4 Vario - Huvema B.V. - table type / for steel / variable speed - image - 6
Column type drilling machine - HU 40 GCS-4 Vario - Huvema B.V. - table type / for steel / variable speed - image - 7
Column type drilling machine - HU 40 GCS-4 Vario - Huvema B.V. - table type / for steel / variable speed - image - 8
Column type drilling machine - HU 40 GCS-4 Vario - Huvema B.V. - table type / for steel / variable speed - image - 9
Column type drilling machine - HU 40 GCS-4 Vario - Huvema B.V. - table type / for steel / variable speed - image - 10
Column type drilling machine - HU 40 GCS-4 Vario - Huvema B.V. - table type / for steel / variable speed - image - 11
Column type drilling machine - HU 40 GCS-4 Vario - Huvema B.V. - table type / for steel / variable speed - image - 12
Column type drilling machine - HU 40 GCS-4 Vario - Huvema B.V. - table type / for steel / variable speed - image - 13
Column type drilling machine - HU 40 GCS-4 Vario - Huvema B.V. - table type / for steel / variable speed - image - 14
Column type drilling machine - HU 40 GCS-4 Vario - Huvema B.V. - table type / for steel / variable speed - image - 15
Column type drilling machine - HU 40 GCS-4 Vario - Huvema B.V. - table type / for steel / variable speed - image - 16
Add to favorites
Compare this product

Characteristics

Structure
column type, table type
Applications
for steel
Other characteristics
M24, variable speed, electric
Drilling diameter

40 mm
(1.57 in)

Power

3,000 W

Rotational speed

Max.: 2,200 rpm
(13,823 rad.min-1)

Min.: 50 rpm
(314.2 rad.min-1)

Weight

750 kg
(1,653 lb)

Description

Description
The Huvema HU 40 GCS-4 Vario is a column gear drill with an adjustable cross table, designed for industrial metalworking where power and precision are required. It offers variable speed control and a robust cast iron frame with gear transmission to ensure stable drilling up to 40 mm in steel. The automatic feed and precise table adjustments simplify work on larger and more complex workpieces.

Features
  • Variable speed control for accurate cutting parameters
  • Drilling capacity up to 40 mm in steel
  • Cast iron frame and gear transmission for low vibration and long service life
  • Automatic feed for consistent drilling operations
  • Adjustable cross table for precise positioning of workpieces
  • Suitable for metalworking, mechanical engineering and maintenance


Technical specifications
  • Brand: Huvema
  • Model: HU 40 GCS-4 Vario
  • Article number: 11324
  • EAN: 8718242586146
  • Drilling capacity (steel): 40 mm
  • Distance spindle - column: 365 mm
  • Spindle taper: MT4
  • Motor power: 3 kW
  • Voltage: 400 V
  • Drilling depth: 200 mm
  • Max distance spindle - table: 550 mm
  • Speed range: 50 - 2200 rpm
