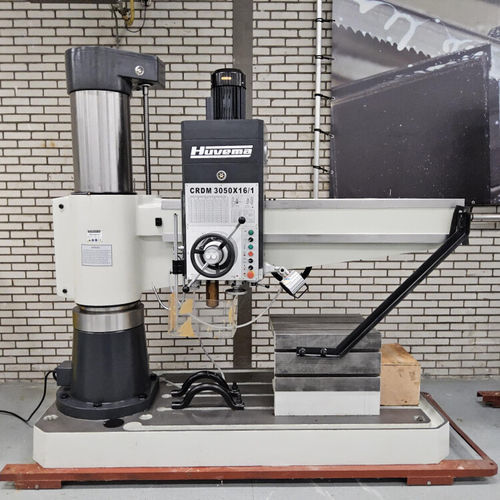

Vertical drilling machine CRDM 3050X1600 NGcolumn typeradialelectric
Add to favorites
Compare this product
Characteristics
- Structure
- vertical, column type, radial
- Other characteristics
- electric
- Drilling diameter
50 mm
(1.97 in)- Power
4,000 W
- Rotational speed
Max.: 2,000 rpm
(12,566.4 rad.min-1)Min.: 25 rpm
(157.1 rad.min-1)- Weight
3,400 kg
(7,496 lb)
Description
Product overview
Industrial radial drilling machine CRDM 3050X1600 NG for heavy-duty drilling tasks. 50 mm drilling capacity with a 1600 mm arm reach, suitable for large workpieces and production environments.
Model & reference
Article number: 30115
Model: CRDM 3050X1600 NG
Commercial name: CRDM 3050X1600 NG
Key features
Transport information
Product group: Machines Industrie
Volumetric weight: 30000
Net weight: 3400 kg
Packaging dimensions: 2670 × 1120 × 2410 cm
HS-Code: 84592900
Applications
Ordering & support
Availability: Temporarily out of stock
Price: Price on request
Article number for order: 30115
Spare parts, technical documentation and commissioning support available on request.
Industrial radial drilling machine CRDM 3050X1600 NG for heavy-duty drilling tasks. 50 mm drilling capacity with a 1600 mm arm reach, suitable for large workpieces and production environments.
Model & reference
Article number: 30115
Model: CRDM 3050X1600 NG
Commercial name: CRDM 3050X1600 NG
Key features
- Drilling capacity: 50 mm
- Arm length (spindle to column distance): 1600 mm
- Spindle taper: MK 5
- Motor power: 4 kW
- Voltage: 400 V
- Quill travel: 315 mm
- Speed range: 25 - 2000 rpm
- Max spindle-to-table distance: 320 - 1220 mm
- Feed: 0.04 - 3.2 mm/min
- Head swivel: 360°
- Coolant pump: 0.12 kW
- Number of feeds / steps: 16
- Net weight: 3400 kg
- Packaging dimensions: 2670 × 1120 × 2410 cm
- HS-Code: 84592900
Transport information
Product group: Machines Industrie
Volumetric weight: 30000
Net weight: 3400 kg
Packaging dimensions: 2670 × 1120 × 2410 cm
HS-Code: 84592900
Applications
- Heavy-duty metalworking and machining
- Component and fixture drilling in manufacturing
- Maintenance and repair workshops handling large parts
Ordering & support
Availability: Temporarily out of stock
Price: Price on request
Article number for order: 30115
Spare parts, technical documentation and commissioning support available on request.
