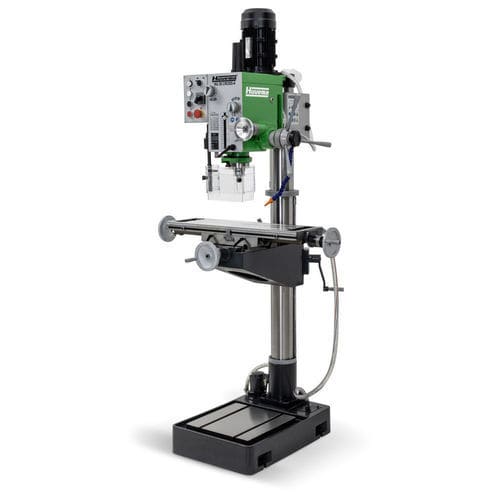

Table type drilling and milling machine HU 30 CROSS-4 NG
M16

Table type drilling and milling machine - HU 30 CROSS-4 NG - Huvema B.V. - M16
Table type drilling and milling machine - HU 30 CROSS-4 NG - Huvema B.V. - M16
Add to favorites
Compare this product

Characteristics

Structure
table type
Other characteristics
M16
Drilling diameter

32 mm
(1.26 in)

Power

1,100 W

Rotational speed

Max.: 1,600 rpm
(10,053.1 rad.min-1)

Min.: 75 rpm
(471.2 rad.min-1)

Weight

350 kg
(772 lb)

Description

Product description
Universal drill-milling machine for workshop machining tasks. Supplied with a cross table with vertical adjustment; the gear train runs in an oil bath for continuous lubrication. Suitable for drilling up to 32 mm and equipped with an MK4 spindle taper and M16 mounting for accessories.

Features
  • Cross table supplied
  • Vertical adjustment of cross table possible
  • Gear wheels run in an oil bath
  • Suitable for combined drilling and milling operations


Technical specifications
  • Article number: 12069
  • Brand: Huvema
  • Drilling capacity: 32 mm
  • Mounting: MK4 / M16
  • Cross table: supplied; vertical adjustment possible
  • Gear lubrication: oil bath
