Vertical drilling machine CRDM 3040x1100 Topline
column typeradial

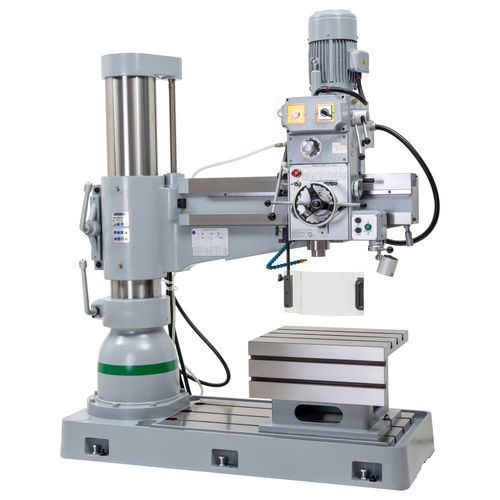

Vertical drilling machine - CRDM 3040x1100 Topline - Huvema B.V. - column type / radial
Vertical drilling machine - CRDM 3040x1100 Topline - Huvema B.V. - column type / radial
Vertical drilling machine - CRDM 3040x1100 Topline - Huvema B.V. - column type / radial - image - 2
Vertical drilling machine - CRDM 3040x1100 Topline - Huvema B.V. - column type / radial - image - 3
Vertical drilling machine - CRDM 3040x1100 Topline - Huvema B.V. - column type / radial - image - 4
Vertical drilling machine - CRDM 3040x1100 Topline - Huvema B.V. - column type / radial - image - 5
Vertical drilling machine - CRDM 3040x1100 Topline - Huvema B.V. - column type / radial - image - 6
Add to favorites
Compare this product

Characteristics

Structure
vertical, column type, radial
Drilling diameter

42 mm
(1.65 in)

Power

2,200 W

Rotational speed

Max.: 1,500 rpm
(9,424.8 rad.min-1)

Min.: 44 rpm
(276.5 rad.min-1)

Weight

1,950 kg
(4,299 lb)

Description

Overview
Radial drilling machine designed for industrial drilling operations. Mechanical clamping system and auxiliary depth-indication dial. Main spindle balanced by a special spring for improved durability. Drive wheels operate in an oil bath and the arm includes a safety device to prevent sudden drops.

Features
  • Mechanical clamping
  • Auxiliary dial for spindle feed depth indication
  • Main spindle balanced by a special spring
  • Drive wheels in oil bath
  • Safety device to prevent sudden arm drop

Applications / Category
Industrial radial drilling machines; column drills; machine tools.

Technical specifications
  • Product ID: 30112
  • Brand: Huvema
  • Product name: Radial drilling machine
  • Clamping: Mechanical clamping
  • Spindle feed: Auxiliary depth-indication dial
  • Spindle balance: Special spring balancing
  • Lubrication: Drive wheels in oil bath
  • Safety: Device preventing sudden arm drop
