Vertical drilling and tapping machine HU 32 V-4 Toplinecolumn typevariable speedelectric
Add to favorites
Compare this product
Characteristics
- Structure
- vertical, column type
- Other characteristics
- electric, tapping, M20, variable speed, belt-driven, MK3
- Drilling diameter
32 mm
(1.26 in)- Power
1,500 W
- Rotational speed
Max.: 3,300 rpm
(20,734.5 rad.min-1)Min.: 100 rpm
(628.3 rad.min-1)- Weight
310 kg
(683 lb)
Description
Product overview
Key specifications
Applications and benefits for workshops
Ordering & transport information

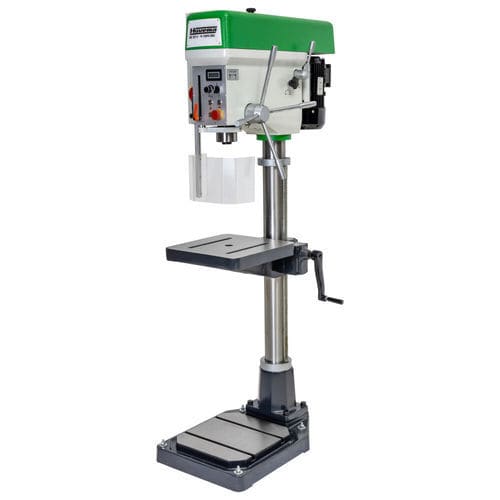

- Floor-standing column drill Huvema 11025 with tapping capability and continuously variable speed for industrial metalworking.
Key specifications
- Drilling capacity: 32 mm
- Tap capacity: M20
- Spindle taper: MT3 (MK 3)
- Spindle-to-column distance: 265 mm
- Engine power: 1.5 kW
- Voltage: 400 V
- Drilling depth: 150 mm
- Speed range: 100–3300 rpm (2 ranges)
- Variable speed: Yes
- Column diameter: 100 mm
- Table dimensions: 380 x 400 mm
- Foot dimensions: 380 x 400 mm
- Maximum spindle–table distance: 820 mm
- Maximum spindle–foot distance: 1235 mm
- T-slots: 4 x M10
- T-slot foot: 2 x M12
- Drive: V-belt
- Machine weight: 310 kg
Applications and benefits for workshops
- Designed for general metal fabrication, maintenance shops and small production lines requiring drilling and tapping up to M20.
- Variable speed and two speed ranges allow adaptation to different materials and tooling.
- Robust column and large travel distances support versatile machining setups.
Ordering & transport information
- Brand: Huvema
- Article number: 11025
- Barcode: 8718242585316
- Net weight (packaged): 386 kg
- Packaging dimensions: 900 x 590 x 1980 mm
- Volumetric weight (for shipping): 10000
- HS code: 84592900
