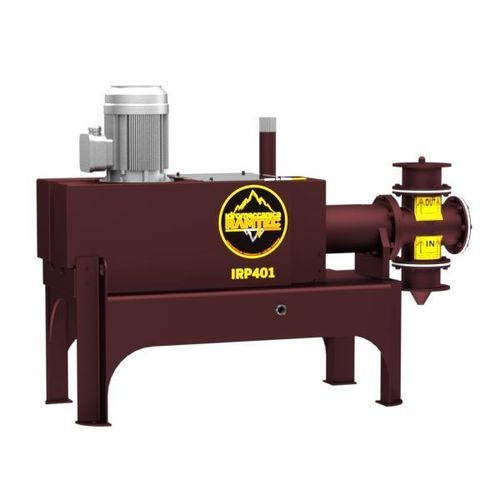

Piston pump IRP401

slurrybeveragefor dairy products

Overview
Idromeccanica Ramtec’s IRP piston pump is designed for continuous, uniform transfer of large volumes of muddy or granular materials. It handles liquids, pastes and high-solids slurries with a minimum humidity of 60%, ensuring stable flow rates in industrial food and processing environments.

Applications

• Olive oil mills
• Purifiers and refineries
• Wineries and beverage production
• Digesters and biogas plants
• Dairy farms and food processing companies
• Transfer of liquid, paste, pulp, pomace, wort, juice or muddy material

Technical specifications

• Model: IRP401
• Type: Piston pump
• Dimensions HxWxD (USA): 47 x 61 x 22 inch
• Dimensions HxWxD (Metric): 1200 x 1550 x 550 mm
• Dry weight (USA): 683.4 lb
• Dry weight (Metric): 310 kg
• Head (USA): 33 – 66 ft
• Head (Metric): 10 – 20 m
• Bore Ø (USA): 6 in
• Bore Ø (Metric): 150 mm
• Stroke (USA): 11 in
• Stroke (Metric): 280 mm
• Aspiration connection Ø (USA): 6.3 in
• Aspiration connection Ø (Metric): 160 mm
• Flow rate (USA): 20 – 31 gal/min
• Flow rate (Metric): 4,500 – 7,000 L/h (45 – 70 q/h)
• Engine power: 4 kW
• Engine frequency: 50 Hz
• Voltage: 380 – 400 V
• Electrical absorption: 8 – 10 A
• Adaptor type: Endless screw

Materials and compliance

• All metal parts in contact with the product: stainless steel
• Seals: food-grade seals to prevent contamination from rust or rubber phthalates
• Suitable for handling materials with at least 60% humidity
• Adaptable electrical parameters and robust mechanical coupling for industrial installations
• Manufacturer: Idromeccanica Ramtec
