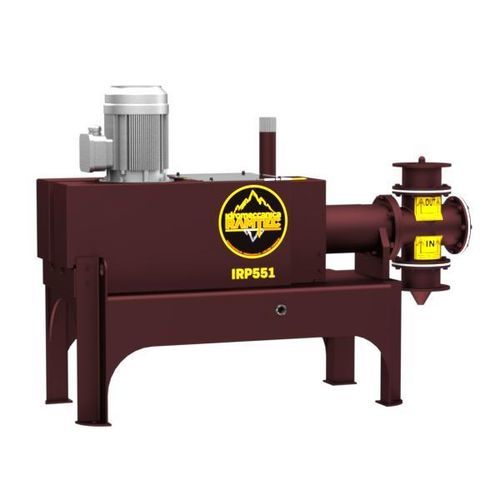

Piston pump IRP551

slurryfor dairy productsfor wine

Description
Idromeccanica Ramtec’s IRP piston pump is designed for continuous, uniform transfer of large volumes of muddy or granular materials. All metal parts in contact with the product are stainless steel suitable for food use and seals are food-grade to prevent contamination from rust or rubber phthalates. The pump handles liquids, pastes, pulps, pomace, wort, juice and muddy materials with a minimum humidity of 60%.

Applications

• Olive oil mills
• Purifiers
• Wineries
• Digesters / biogas production
• Dairy farms and food companies
• Transferring liquid, paste, pulp, pomace, wort, juice or muddy material (min. 60% humidity)

USA SPECS
Dimensions HxWxD: 47x61x22 inch
Dry weight: 716.5 lb
Head: 49 – 82 ft
Bore Ø: 6 inches
Stroke: 11 inches
Aspiration connection Ø: 6.3 inches
Flow rate: 33 – 37 gal/min
Engine power: 5.5 kW
Engine frequency: 50 Hz
Voltage: 380 – 400 V
Electrical absorption: 10 – 12 A
Adaptor type: Endless screw

METRIC SYSTEM
Dimensions HxWxD: 1200x1550x550 mm
Dry weight: 325 kg
Head: 15 – 25 m
Bore Ø: 150 mm
Stroke: 280 mm
Aspiration connection Ø: 160 mm
Flow rate: 7500 – 8500 L/h
75 – 85 q/h
Engine power: 5.5 kW
Engine frequency: 50 Hz
Voltage: 380 – 400 V
Electrical absorption: 10 – 12 A
Adaptor type: Endless screw

Technical specifications

• Model: IRP551
• Type: Piston pump
• Materials in contact with product: stainless steel (suitable for food use)
• Seals: food-grade seals (prevent contamination from rubber phthalates)
• Dimensions (mm): 1200 x 1550 x 550
• Dry weight: 325 kg
• Bore: 150 mm
• Stroke: 280 mm
• Aspiration connection Ø: 160 mm
• Flow rate: 7500 – 8500 L/h (33 – 37 gal/min)
• Head: 15 – 25 m (49 – 82 ft)
• Engine power: 5.5 kW
• Engine frequency: 50 Hz
• Voltage: 380 – 400 V
• Electrical absorption: 10 – 12 A
• Adaptor type: Endless screw
• Suitable for moving: liquid, paste, pulp, pomace, wort, juice or muddy material (min. 60% humidity)
