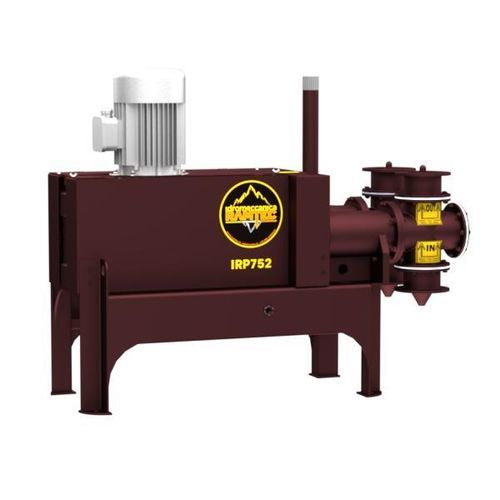

Piston pump IRP752

for food productsfor liquidswith electric motor

Overview
Idromeccanica Ramtec IRP piston pump is designed to transfer large, continuous volumes of muddy or granular material with a minimum humidity of 60%. All metal parts that may contact food are stainless steel and seals are food-grade to prevent contamination.

USA SPECS
Dimensions HxWxD: 47x61x22 inch
Dry weight: 992 lb
Head: 49 – 82 ft
Bore Ø: 6 inches
Stroke: 11 inches
Aspiration connection Ø: 6.3 inches
Flow rate: 66 – 79 gal/min
Engine power: 7.5 kW
Engine frequency: 50 Hz
Voltage: 380 – 400 V
Electrical absorption: 10 – 12 A
Adaptor type: Endless screw

METRIC SYSTEM
Dimensions HxWxD: 1200x1550x550 mm
Dry weight: 450 kg
Head: 15 – 25 m
Bore Ø: 150 mm
Stroke: 280 mm
Aspiration connection Ø: 160 mm
Flow rate: 15000 – 18000 L/h
Flow rate (alternative): 150 – 180 q/h
Engine power: 7.5 kW
Engine frequency: 50 Hz
Voltage: 380 – 400 V
Electrical absorption: 10 – 12 A
Adaptor type: Endless screw

Materials and seals
All metal components that can contact product are manufactured in stainless steel. Seals are food-grade to avoid contamination from rust or rubber phthalates, ensuring suitability for food industry applications.

Applications

• Olive oil mills
• Purifiers
• Wineries
• Digesters / biogas production
• Dairy farms
• Food processing companies
• Transfer of liquids, pastes, pulps, pomace, wort, juice or muddy material with minimum humidity of 60%

Technical specifications

• Model: IRP752
• Dimensions (HxWxD): 47x61x22 inch / 1200x1550x550 mm
• Dry weight: 992 lb / 450 kg
• Head: 49 – 82 ft / 15 – 25 m
• Bore Ø: 6 inches / 150 mm
• Stroke: 11 inches / 280 mm
• Aspiration connection Ø: 6.3 inches / 160 mm
• Flow rate: 66 – 79 gal/min (15000 – 18000 L/h)
• Engine power: 7.5 kW
• Engine frequency: 50 Hz
• Voltage: 380 – 400 V
• Electrical absorption: 10 – 12 A
• Adaptor type: Endless screw
• Materials: Stainless steel for parts in contact with food
• Seals: Food-grade seals preventing contamination from rust and rubber phthalates
• Minimum product humidity for pumping: 60%
