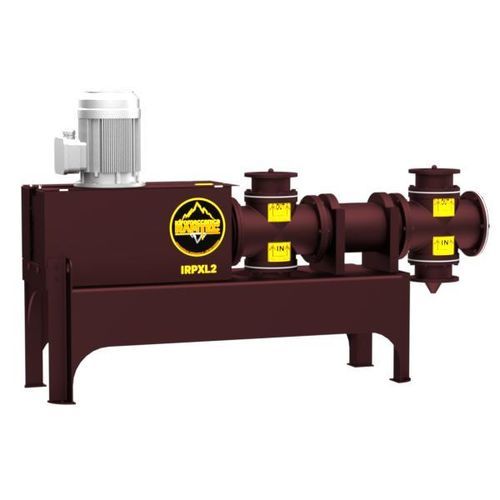

Piston pump IRPXL2

for food productsfor liquidswith electric motor

Description
Idromeccanica Ramtec's IRP piston pump IRPXL2 is engineered to convey large and continuous volumes of muddy, pasty or granular products with a minimum moisture content of 60%. All metal parts in contact with the product are made of stainless steel and seals are food-grade, preventing contamination from rust or rubber phthalates. The unit is suitable for continuous industrial use in olive oil mills, purifiers, wineries, digesters for biogas, dairy farms and food processing plants.

USA SPECS

• Dimensions HxWxD: 51 x 81 x 24 inch
• Dry weight: 1058 lb
• Head: 39 – 66 ft
• Bore Ø: 8 inches
• Stroke: 11 inches
• Aspiration connection Ø: 8.3 inches
• Flow rate: 132 – 154 gal/min
• Engine power: 7.5 kW
• Engine frequency: 50 Hz
• Voltage: 380 – 400 V
• Electrical absorption: 10 – 12 A
• Adaptor type: Endless screw

METRIC SYSTEM

• Dimensions HxWxD: 1300 x 2050 x 600 mm
• Dry weight: 480 kg
• Head: 12 – 20 m
• Bore Ø: 200 mm
• Stroke: 280 mm
• Aspiration connection Ø: 210 mm
• Flow rate: 30000 – 35000 L/h; 300 – 350 q/h
• Engine power: 7.5 kW
• Engine frequency: 50 Hz
• Voltage: 380 – 400 V
• Electrical absorption: 10 – 12 A
• Adaptor type: Endless screw

Applications and materials

• Typical applications: olive oil mills, purifiers, wineries, digesters, biogas production, dairy farms, food companies
• Materials handled: liquid, paste, pulp, pomace, wort, juice, muddy or granular material with minimum humidity of 60%

Technical specifications

• Model: IRPXL2
• Construction: all metal parts in contact with product made of stainless steel
• Seals: food-grade seals (compliant for food use, prevent contamination from rust or rubber phthalates)
• Dimensions (USA): 51 x 81 x 24 inch
• Dimensions (Metric): 1300 x 2050 x 600 mm
• Dry weight (USA): 1058 lb
• Dry weight (Metric): 480 kg
• Head (USA): 39 – 66 ft
• Head (Metric): 12 – 20 m
• Bore Ø (USA): 8 inches
• Bore Ø (Metric): 200 mm
• Stroke (USA): 11 inches
• Stroke (Metric): 280 mm
• Aspiration connection Ø (USA): 8.3 inches
• Aspiration connection Ø (Metric): 210 mm
• Flow rate (USA): 132 – 154 gal/min
• Flow rate (Metric): 30000 – 35000 L/h (300 – 350 q/h)
• Engine power: 7.5 kW
• Engine frequency: 50 Hz
• Voltage: 380 – 400 V
• Electrical absorption: 10 – 12 A
• Adaptor type: Endless screw
