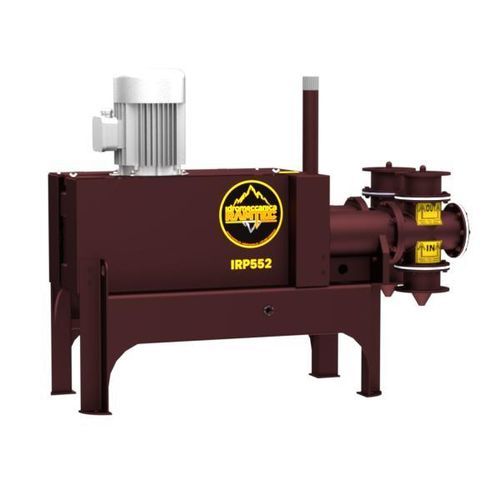

Piston pump IRP552

slurryfor dairy productsfor wine

Overview
The Idromeccanica Ramtec IRP piston pump is designed to transport large volumes of viscous, muddy or granular products continuously and uniformly. All metal parts in contact with food are stainless steel and seals are food-grade, preventing contamination by rust or rubber phthalates. The IRP range handles liquids, pastes, pulps, pomace, wort, juice and other materials with a minimum humidity of 60%.

Applications

• Olive oil mills
• Purifiers
• Wineries
• Digesters / biogas production
• Dairy farms
• Food companies
• Transfer of liquid, paste, pulp, pomace, wort, juice or muddy material (min. 60% humidity)

USA SPECS
Dimensions HxWxD: 47x61x22 inch
Dry weight: 970 lb
Head: 49 – 82 ft
Bore Ø: 6 inches
Stroke: 11 inches
Aspiration connection Ø: 6.3 inches
Flow rate: 62 – 70 gal/min
Engine power: 5.5 kW
Engine frequency: 50 Hz
Voltage: 380 – 400 V
Electrical absorption: 10 – 12 A
Adaptor type: Endless screw

METRIC SYSTEM
Dimensions HxWxD: 1200x1550x550 mm
Dry weight: 440 kg
Head: 15 – 25 m
Bore Ø: 150 mm
Stroke: 280 mm
Aspiration connection Ø: 160 mm
Flow rate: 14,000 – 16,000 L/h (140 – 160 q/h)
Engine power: 5.5 kW
Engine frequency: 50 Hz
Voltage: 380 – 400 V
Electrical absorption: 10 – 12 A
Adaptor type: Endless screw

Technical specifications

• Model: IRP552
• Brand: Idromeccanica Ramtec
• Pump type: Piston pump
• Materials: All metal parts in contact with food are stainless steel
• Seals: Food-grade seals (compliant for food use, prevent contamination from rust or rubber phthalates)
• Minimum product humidity: 60%
• Suitable for: liquid, paste, pulp, pomace, wort, juice, muddy/granular materials
• Dimensions (imperial): 47x61x22 inch
• Dimensions (metric): 1200x1550x550 mm
• Dry weight (imperial): 970 lb
• Dry weight (metric): 440 kg
• Head: 49–82 ft / 15–25 m
• Bore Ø: 6 in / 150 mm
• Stroke: 11 in / 280 mm
• Aspiration connection Ø: 6.3 in / 160 mm
• Flow rate: 62–70 gal/min / 14,000–16,000 L/h (140–160 q/h)
• Engine power: 5.5 kW
• Engine frequency: 50 Hz
• Voltage: 380–400 V
• Electrical absorption: 10–12 A
• Adaptor type: Endless screw
