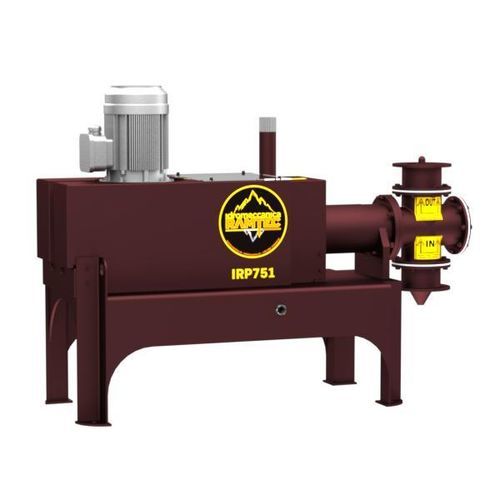

Piston pump IRP751

for dairy productsfor winefor food products

Description
Idromeccanica Ramtec's IRP piston pump is designed to continuously and uniformly transfer large quantities of muddy or granular materials. All metal parts in contact with food are made of stainless steel and seals are food-grade, preventing contamination by rust or rubber phthalates. IRP piston pumps are suitable for transferring liquids, pastes, pulps, pomace, wort, juice or muddy material with a minimum humidity of 60%.

Applications

• Olive oil mills
• Purifiers
• Wineries
• Digesters and biogas production
• Dairy farms
• Food companies
• Handling of liquid, paste, pulp, pomace, wort, juice or muddy material (min. 60% humidity)

Construction and materials
All metal parts in contact with the product are stainless steel. Seals are food-grade to prevent contamination by rust or rubber phthalates.

USA SPECS
Dimensions HxWxD: 47 x 61 x 22 inch
Dry weight: 738.5 lb
Head: 49 – 82 ft
Bore Ø: 6 inches
Stroke: 11 inches
Aspiration connection Ø: 6.3 inches
Flow rate: 35 – 40 gal/min
Engine power: 7.5 kW
Engine frequency: 50 Hz
Voltage: 380 – 400 V
Electrical absorption: 10 – 12 A
Adaptor type: Endless screw

METRIC SYSTEM
Dimensions HxWxD: 1200 x 1550 x 550 mm
Dry weight: 335 kg
Head: 15 – 25 m
Bore Ø: 150 mm
Stroke: 280 mm
Aspiration connection Ø: 160 mm
Flow rate: 8000 – 9000 L/h; 80 – 90 q/h
Engine power: 7.5 kW
Engine frequency: 50 Hz
Voltage: 380 – 400 V
Electrical absorption: 10 – 12 A
Adaptor type: Endless screw

Technical specifications

• Model: IRP751
• Brand: Idromeccanica Ramtec
• Dimensions: 47x61x22 inch (1200x1550x550 mm)
• Dry weight: 738.5 lb (335 kg)
• Head: 49–82 ft (15–25 m)
• Bore Ø: 6 in (150 mm)
• Stroke: 11 in (280 mm)
• Aspiration connection Ø: 6.3 in (160 mm)
• Flow rate: 35–40 gal/min (8000–9000 L/h; 80–90 q/h)
• Engine power: 7.5 kW
• Engine frequency: 50 Hz
• Voltage: 380–400 V
• Electrical absorption: 10–12 A
• Adaptor type: Endless screw
• Materials in contact with product: stainless steel
• Seals: food-grade compliant (prevents rust and rubber phthalate contamination)
