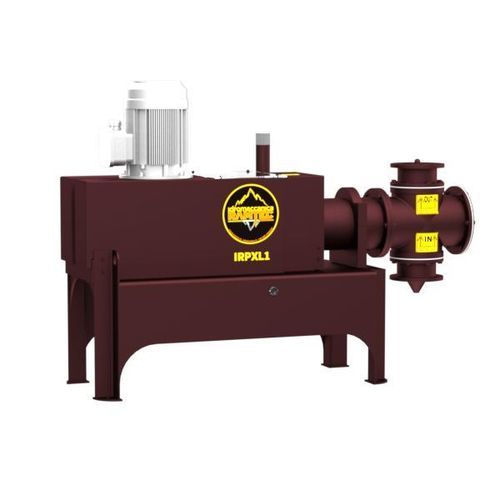

Piston pump IRPXL1

slurryfor food productswith electric motor

Description
Idromeccanica Ramtec’s IRP piston pump is designed to transfer consistently and uniformly large quantities of muddy, granular or viscous materials. All metal parts that contact the product are made of stainless steel and seals comply with food-use standards to prevent contamination from rust or rubber phthalates. Typical applications include olive oil mills, purifiers, wineries, digesters, biogas production, dairy farms and food processing plants. The pump handles liquids, pastes, pulps, pomace, wort, juice or muddy material with a minimum humidity of 60%.

USA SPECS
Dimensions HxWxD: 49x69x22 inch
Dry weight: 970 lb
Head: 49 – 82 ft
Bore Ø: 8 inches
Stroke: 11 inches
Aspiration connection Ø: 8.3 inches
Flow rate: 66 – 79 gal/min
Engine power: 7.5 kW
Engine frequency: 50 Hz
Voltage: 380 – 400 V
Electrical absorption: 10 – 12 A
Adaptor type: Endless screw

METRIC SYSTEM
Dimensions HxWxD: 1250x1750x550 mm
Dry weight: 440 kg
Head: 15 – 25 m
Bore Ø: 200 mm
Stroke: 280 mm
Aspiration connection Ø: 210 mm
Flow rate: 15000 – 18000 L/h
150 – 180 q/h
Engine power: 7.5 kW
Engine frequency: 50 Hz
Voltage: 380 – 400 V
Electrical absorption: 10 – 12 A
Adaptor type: Endless screw

Technical characteristics / specifications

• Model: IRPXL1
• Brand: Idromeccanica Ramtec
• Application: Transfer of liquid, paste, pulp, pomace, wort, juice or muddy/granular materials (min. humidity 60%)
• Materials in contact with product: stainless steel
• Seals: food-use compliant (prevents contamination from rust or rubber phthalates)
• Dimensions (metric): 1250 x 1750 x 550 mm
• Dimensions (imperial): 49 x 69 x 22 inch
• Dry weight (metric): 440 kg
• Dry weight (imperial): 970 lb
• Head: 15 – 25 m (49 – 82 ft)
• Bore Ø: 200 mm (8 inches)
• Stroke: 280 mm (11 inches)
• Aspiration connection Ø: 210 mm (8.3 inches)
• Flow rate: 15000 – 18000 L/h (66 – 79 gal/min)
• Alternate flow unit: 150 – 180 q/h
• Engine power: 7.5 kW
• Engine frequency: 50 Hz
• Voltage: 380 – 400 V
• Electrical absorption: 10 – 12 A
• Adaptor type: Endless screw
