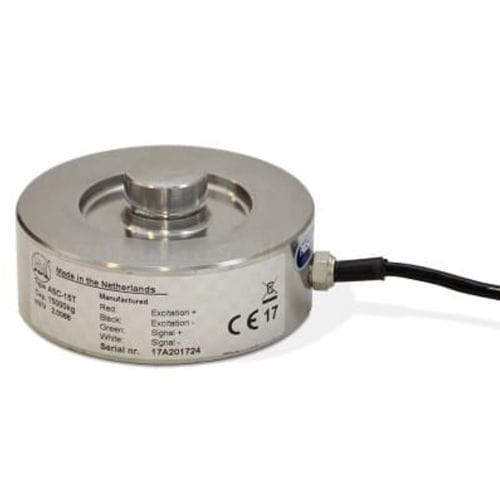

Compression load cell ASC series
2 mV/Vanalogfor presses

Compression load cell - ASC series - Instrumentys - 2 mV/V / analog / for presses
Compression load cell - ASC series - Instrumentys - 2 mV/V / analog / for presses
Add to favorites
Compare this product
Go to the Instrumentys website for more information

Characteristics

Type
compression
Output signal
2 mV/V, analog
Applications
for presses
Other characteristics
IP68, compact, stainless steel, high-capacity

Description

Summary
  • Force sensor for press applications, compact design.
  • Stainless steel version.
  • Ingress protection: IP68.
  • Sensitivity: 2 mV/V.


Measuring ranges
  • Available ranges: from 0–250 kg up to 0–200 tonnes (e.g. ASC250, ASC500, ASC1000, ASC2500, ASC5000, ASC7500, ASC10T, ASC15T, ASC30T, ASC50T, ASC100T, ASC200T).


Cabling
  • Shielded 4-conductor connection cable, 5 m for capacities 250 kg to 5000 kg.
  • Shielded 4-conductor connection cable, 10 m for capacities 7500 kg to 100000 kg.


Temperature conditions
  • Specified operating temperature: -10 °C to +50 °C.
  • Alternative operating temperature range: -20 °C to +60 °C.


Notes
  • The product provides an analog signal requiring electronic processing (display/transmitter/weighing electronics recommended for reading and display).


Technical specifications
  • Available models: ASC250, ASC500, ASC1000, ASC2500, ASC5000, ASC7500, ASC10T, ASC15T, ASC30T, ASC50T, ASC100T, ASC200T.
  • Sensitivity: 2 mV/V.
  • Drift after 30 minutes: 0.02% of full scale (FS).
  • Maximum allowable excitation: 15 VDC.
  • Input resistance: 750 ± 10 ohms.
  • Output resistance: 700 ± 5 ohms.
  • Zero balance: ± 1% F.S.
  • Insulation resistance: > 5000 MΩ.
  • Rated overload: 120% of full scale (FS).
  • Ingress protection: IP68.
  • Body material: stainless steel.
