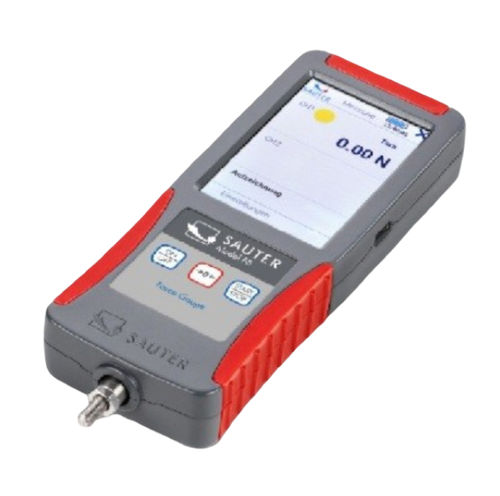

In-line force gauge and torque meter FS

stationarybench-topportable

Description
The premium SAUTER FS force gauge features an internal measuring cell and supports both tension and compression applications for field or laboratory use. It is suitable for quick tests or stationary measurements when used with a test stand or on a production line. The multifunction color touchscreen displays real-time measurement values. Measured data are stored in internal memory and can be transferred to a PC via USB for post-processing. The system is compatible with strain-gauge sensors and supports up to four external sensors connected simultaneously. When all external channels are used, the internal sensor channel is disabled while an external sensor is connected.

Main features (at a glance)

• High resolution: up to 10,000 points per channel
• Internal range: 0…20 N to 0…500 N (depending on version)
• External range: depends on the sensor used
• Internal measuring cell accuracy: 0.1 % of full scale (FS)
• External measuring cell: depends on the external sensor
• Multifunction color touchscreen
• Memory: SD card for recording
• Data transfer via USB (recording and export)
• Sampling / transmission rate: up to 1 kHz per channel
• Power supply: rechargeable internal battery (portable operation)
• Battery life: up to 8 hours without backlight
• Charging time: approx. 8 hours
• Power adapter supplied with standard USB-C plug

Available models

• FS 2
• FS 2-20
• FS 2-50
• FS 2-100
• FS 2-200
• FS 2-500
• FS 4
• FS 4-20
• FS 4-50
• FS 4-100
• FS 4-200
• FS 4-500

Technical data / specifications

• Resolution: up to 10,000 points per channel
• Measured value storage: SD card (internal memory)
• Data transmission: up to 1 kHz per channel via USB interface
• Accuracy: internal cell 0.1 % of FS; external cell according to sensor
• Available internal range: 0…20 N to 0…500 N (depending on model)
• External range: depends on the external sensor used
• Overall dimensions (L×W×H): 71 × 31 × 180 mm
• Overload protection: 150 % of FS (with internal cell)
• Force attachment thread: M6
• Portable operation: rechargeable internal battery
• Battery life: up to 8 hours without backlight
• Charging time: approx. 8 hours
• Power adapter: supplied, standard USB-C plug
• Weight: approx. 400 g
