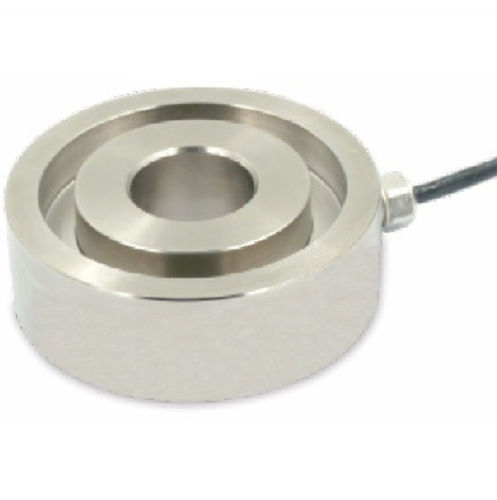

Compression load cell LC-C119B

pancake typeanaloghigh-precision

Overview
Compression load washer for force measurement, designed for capacities up to 50 kN. Analog mV/V output, high dynamic response and high protection rating for industrial applications.

Main features

• Available ranges: 0 to 5 kN … 0 to 50 kN (capacities: 5 / 10 / 20 / 30 / 50 kN)
• Typical sensitivity: 1.5 mV/V (±10%)
• Excellent linearity: 0.2% of full scale
• Protection rating: IP67
• Material: stainless steel

Technical specifications

• Capacity: 5 / 10 / 20 / 30 / 50 kN
• Sensitivity: 1.5 ±10% mV/V
• Zero offset: ±2% of full scale
• Non-linearity: 0.2% of full scale
• Hysteresis: 0.2% of full scale
• Repeatability: 0.1% of full scale
• Creep (30 min): 0.2% of full scale
• Effect of temperature on output: 0.1% FS / 10°C
• Effect of temperature on zero: 0.1% FS / 10°C
• Input resistance: 780 ±20 Ω
• Output resistance: 700 ±10 Ω
• Insulation: ≥ 5000 MΩ / 100 Vdc
• Recommended supply voltage: 5 V
• Maximum supply voltage: 15 V
• Temperature compensation: -10 to 60°C
• Operating temperature: -20 to 80°C
• Safe overload: 150% of full scale
• Breaking load: 300% of full scale
• Cable length: Ø4 x 4000 mm
• Protection rating: IP67
• Material: stainless steel
• Output: analog signal (mV/V) requiring conditioning/reading electronics
• Option: available with calibration certificate (COFRAC, COFRAC-equivalent or COFRAC-accredited)
