Tension grip AC 14testopening
Add to favorites
Compare this product
Characteristics
- Options
- tension, test, opening
Description
Overview

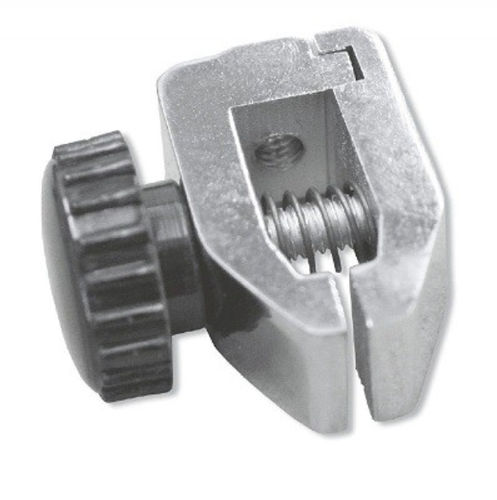

Sauter AC 14 tensile test grip designed for tensile testing up to 500 N. Manual opening, M6 threaded mounting. Supplied and used as a pair for mounting on test rigs.
Key features
Technical specifications
Applications
Mounting and delivery
Sauter AC 14 tensile test grip designed for tensile testing up to 500 N. Manual opening, M6 threaded mounting. Supplied and used as a pair for mounting on test rigs.
Key features
- Manual opening
- Jaw width: 15 mm
- Maximum opening: 4 mm
- Force capacity: 500 N
- Weight: 200 g per pair (2 grips)
- Overall dimensions: 40 x 36 x 20 mm
- Coupling: M6 thread
Technical specifications
- Model: AC 14
- Type: tensile test grip
- Opening mode: manual
- Grip width: 15 mm
- Maximum opening: 4 mm
- Force capacity: 500 N
- Weight: 200 g (per pair)
- Dimensions (L x H x D): 40 x 36 x 20 mm
- Coupling: M6 thread
Applications
- Laboratory quality control
- Tensile testing of materials and components
- Compatibility with universal testing machines equipped with M6 mounting
Mounting and delivery
- Mounting via M6 thread on rods or compatible adapters
- Supplied as a pair (2 grips)
- Weight specified: 200 g per pair
