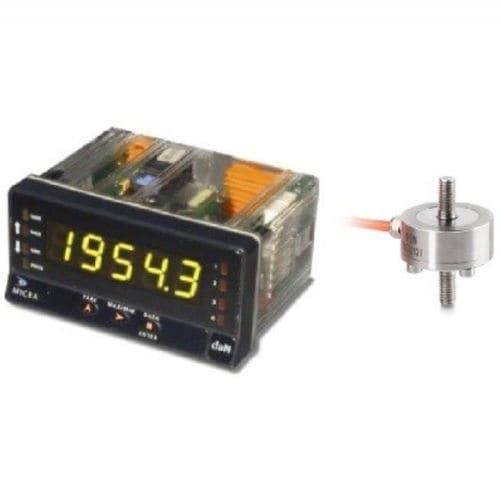

Compression load cell CO-Y1

button typesingle-axisstrain gauge

Summary

• Stainless steel miniature button load cells
• Compression range: 0 to 100 N … 0 to 20 kN (variants available)
• Ingress protection: IP67
• Sensor paired with MICRA M digital indicator

Description
The CO-Y1 is a miniature compression force sensor based on strain-gauge bridge technology, fully stainless steel. It is particularly suitable for test installations and test benches. Despite its small size, it provides high accuracy (0.5% of full scale) and IP67 protection. The sensor provides a typical output signal of 1 or 1.5 mV/V.

Indicator / Electronics (MICRA M)
Multifunction digital indicator allowing configuration of inputs and measurement display. Wide-range power supply: 85-265 VAC / 100-300 VDC. Compact format (mm): 96 x 48 x 60. Resolution: ±15 bits. Reading rate: 20 readings/s. Analog and digital outputs available as options.

Accepted input signals

• Load cells: mV/V, mV
• Process: ±10 VDC, ±20 mA, potentiometer
• Temperature: Pt100 probe, thermocouples types J, K and T

Output options (on request)

• 4-20 mA
• 0-10 V
• RS232
• RS485

Available ranges
0 to 10 kg / 100 N
0 to 20 kg / 200 N
0 to 50 kg / 500 N
0 to 100 kg / 1 kN
0 to 200 kg / 2 kN
0 to 500 kg / 5 kN
0 to 1000 kg / 10 kN
0 to 2000 kg / 20 kN

Characteristics / technical specifications

• Model: CO-Y1 (chain CO-Y1 + indicator MICRA M)
• Type: miniature compression load cell (button)
• Material: stainless steel
• Accuracy: 0.5% of full scale
• Output signal: 1 or 1.5 mV/V
• Ingress protection: IP67
• Power supply (MICRA M): 85-265 VAC / 100-300 VDC
• Indicator format (mm): 96 x 48 x 60
• Resolution: ±15 bits
• Sampling rate: 20 readings/s
• Compatible inputs: mV/V, mV, ±10 V, ±20 mA, potentiometer, Pt100, thermocouples J/K/T
• Output options: 4-20 mA, 0-10 V, RS232, RS485 (on request)
• Application fields: testing and test benches for mass and force measurements
