Compression load cell LC-C197

strain gaugeanalog2 mV/V

Summary

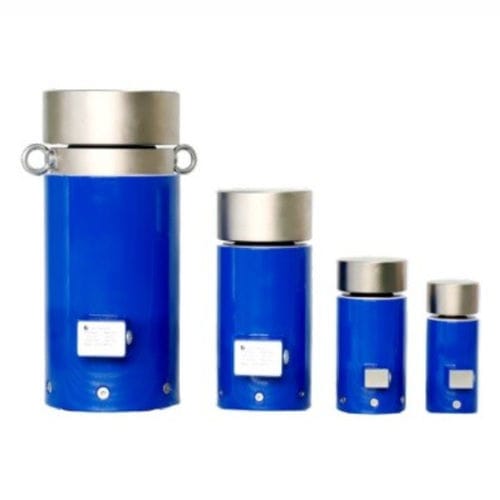

High-capacity compression load cell LC-C197

• Available measurement ranges: 50 / 100 / 200 / 500 / 1000 / 2000 / 3000 / 5000 / 10000 / 20000 / 50000 kN
• Nominal sensitivity: 2.0 mV/V
• Ingress protection: IP67
• Material: Stainless steel

Description
High-capacity compression load cell designed for high-force measurements. The sensor delivers an analog output that requires conditioning/processing for reading and display. Optionally available with calibration certificate (COFRAC, COFRAC-equivalent or COFRAC-accredited) upon request.

Characteristics / technical specifications

• Available capacities: 50 / 100 / 200 / 500 / 1000 / 2000 / 3000 / 5000 / 10000 / 20000 / 50000 kN
• Sensitivity: 2.0 mV/V
• Offset: ±5 mV/V
• Non-linearity: 0.05% of full scale
• Hysteresis: 0.05% of full scale
• Repeatability: 0.05% of full scale
• Creep (300 min): 0.05% of full scale
• Temperature effect on output: 0.05% FS / 10°C
• Temperature effect on zero: 0.05% FS / 10°C
• Input resistance: 760 ± 20 Ω
• Output resistance: 760 ± 10 Ω
• Insulation: ≥ 5000 MΩ / 100 Vdc
• Recommended supply voltage: 5 to 12 V
• Maximum supply voltage: 15 V
• Temperature compensation: -10 to 40°C
• Operating temperature: -20 to 60°C
• Limit load: 150% of full scale
• Break load: 300% of full scale
• Cable length: Ø5 x 6000 mm
• Material: Stainless steel
• Ingress protection: IP67
