Tension/compression load cell CO-Y3 + MICRA-M

single-axisstrain gaugeanalog

Presentation

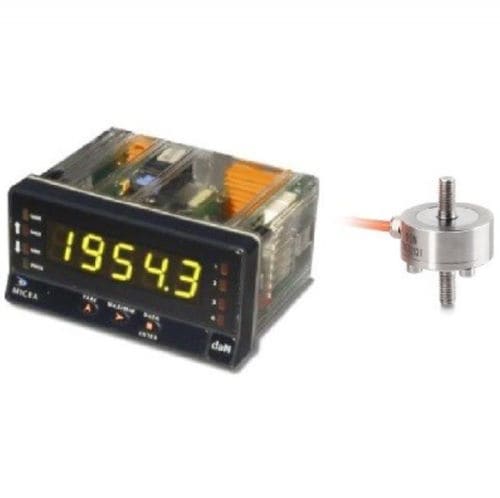

Force measurement device in tension/compression: CO-Y3 sensor combined with the MICRA-M display. The CO-Y3 is a micro stainless-steel tension-compression sensor using a Wheatstone bridge. Under load, the strain gauges measure deformation and provide a raw analog signal in mV/V.

Main features of the CO-Y3 sensor

• Body: fully stainless steel
• Measurement principle: Wheatstone bridge (strain gauges)
• Output signal: 2 mV/V (raw, unamplified)
• Ingress protection: IP65
• Application range: mass and force measurement

Display / Indicator MICRA-M
Multifunction digital display paired with the sensor, user-configurable for various input types.

• Accepts a wide range of input signals: load cells (mV/V, mV), process inputs (±10 Vdc, ±20 mA), potentiometer
• Temperature inputs: Pt100 probe, thermocouples types J, K and T
• Analog and digital outputs: available on request (optional)
• Power supply: 85-265 Vac / 100-300 Vdc
• Format (mm): 96 x 48 x 60
• Resolution: ±15 bits
• Reading rate: 20 / s

Range variants
Available ranges: 0 to 5 kg / 50 N, 0 to 10 kg / 100 N

Options
Delivery with COFRAC calibration certificate, COFRAC-equivalent certificate or COFRAC-traceable calibration available on request (optional).

Downloads (technical documents)
CO-Y3 Datasheet (PDF), CO-Y3 Manual (PDF)

Technical specifications

• Model: CO-Y3 (sensor) + MICRA-M (display)
• Ranges: 0 to 5 kg / 50 N; 0 to 10 kg / 100 N
• Accuracy: ≤±0.1% F.S.
• Ingress protection: IP65
• Sensor output: 2 mV/V (raw)
• Sensor material: stainless steel
• Display power supply: 85-265 Vac / 100-300 Vdc
• Display format (mm): 96 x 48 x 60
• Display resolution: ±15 bits
• Reading speed: 20 readings/s
• Options: analog and digital outputs (on request), COFRAC calibration certificate (optional)
