Tension/compression load cell CR-Y1

pancake type2 mV/Vweighing

Description

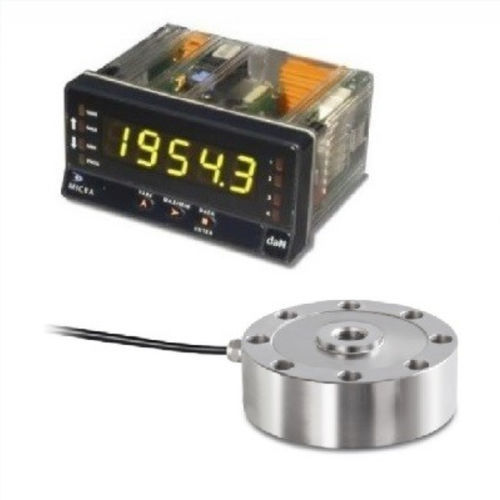

Force measurement instrument for tension and compression CR-Y1 paired with the MICRA M indicator. Suitable for weighing and force measurement in tension and compression, test benches and special machines. Force transmitted via a loading piece or threaded hole. Mounting/loading element included with the pancake load cell CR-Y1.

Measurement ranges

• Weighing: 0 to 500 kg … 0 to 20 t
• Force measurement: 0 to 5 kN … 0 to 200 kN

Metrological characteristics and compliance

• High accuracy: combined error 0.05% of full scale (FS)
• Accuracy according to OIML R60 C1
• RoHS compliant

Construction and environment

• Hermetic stainless steel housing
• Ingress protection: IP68 (according to EN 60529)
• Sensitivity: 2 mV/V

Mounting and threads

• Thread for loading piece or other force application: up to 5000 kg M16×1,5
• From 10000 kg M32×1,5

Associated indicator (MICRA M) — main features

• Multifunction digital indicator accepting a wide variety of input signals
• Accepted signals: load cells (mV/V, mV), process (±10 Vdc, ±20 mA, potentiometer), temperature (Pt100, thermocouples J, K, T)
• Analog and digital outputs available as options
• Power supply: 85-265 Vac / 100-300 Vdc
• Dimensions (mm): 96 x 48 x 60
• Resolution: ±15 bits
• Readings: 20/s

Options

• COFRAC calibration certificate or COFRAC-linked certificate available as an option

Additional information (available variants)

• Available ranges: 0.5 t / 5 kN, 1 t / 10 kN, 2 t / 20 kN, 5 t / 50 kN, 10 t / 100 kN, 20 t / 200 kN

Technical characteristics / specifications

• Sensor type: pancake load cell (CR-Y1)
• Applications: weighing, tension and compression force measurement, test benches
• Measurement ranges (examples): 0.5 t / 5 kN → 20 t / 200 kN
• Accuracy: 0.05% FS (combined error)
• Sensitivity: 2 mV/V
• Environmental protection: IP68
• Housing material: hermetic stainless steel
• Indicator power supply (MICRA M): 85-265 Vac / 100-300 Vdc
• Indicator dimensions (mm): 96 x 48 x 60
• Indicator resolution: ±15 bits
• Indicator sampling rate: 20 readings/s
• Thread for force application: up to 5000 kg M16×1,5; from 10000 kg M32×1,5
• Options: analog/digital outputs on request, COFRAC calibration certificate optional
