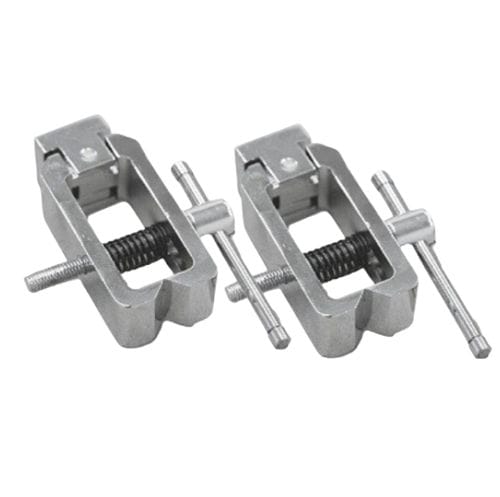

Manual gripper AC 01parallelfor workpiecesuniversal
Add to favorites
Compare this product
Characteristics
- Operation
- manual
- Type
- parallel
- Application
- for workpieces
- Options
- universal
- Grip strength
500 N
- Stroke
Min.: 0 mm
(0 in)Max.: 22 mm
(0.866 in)
Description
Description
Gripping clamp Sauter AC 01 designed for pull-off tests up to 500 N. Manual opening, maximum opening 22 mm. Supplied as a pair (2 clamps) with M6 threaded coupling for mounting on test equipment.
Main applications
Features / technical specifications
Gripping clamp Sauter AC 01 designed for pull-off tests up to 500 N. Manual opening, maximum opening 22 mm. Supplied as a pair (2 clamps) with M6 threaded coupling for mounting on test equipment.
Main applications
- Adhesion and pull-off tests in laboratories
- Quality control on parts and components
- Integration on universal testing machines via M6 thread
Features / technical specifications
- Type: gripping clamp for pull-off testing
- Opening mode: manual
- Maximum opening: 22 mm
- Rated capacity: 500 N
- Weight: 430 g (per pair, 2 clamps)
- Dimensions (L x H x D): 75 x 65 x 20 mm
- Coupling: M6 thread
