Tension grip AC 16

testopening

Overview

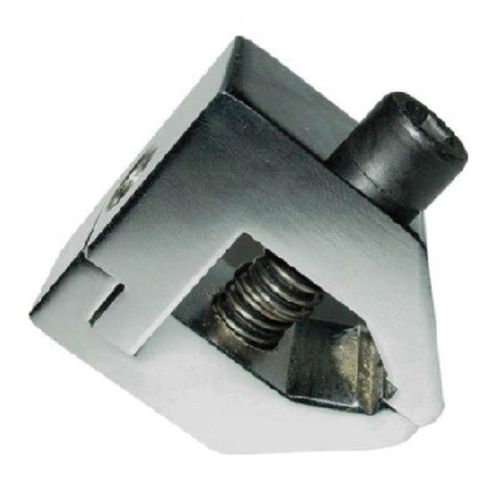

Gripping clamp Sauter AC 16 designed for sample gripping and tensile testing up to 5000 N (5 kN). Suitable for integration on motorized or manual test benches.

Main features

• Manual opening
• Jaw opening: 5 mm
• Capacity: 5000 N (5 kN)
• Weight: 400 g per pair (2 grips)
• Overall dimensions: 52 x 50 x 20 mm
• Coupling: M10 thread

Applications
For tensile strength tests and sample fixation on universal testing machines (motorized or manual) and bench testers in laboratory and production environments.

Technical specifications

• Model: AC 16
• Rated capacity: 5000 N
• Maximum opening: 5 mm
• Opening type: manual
• Weight: 400 g (per pair)
• Dimensions (L x W x H): 52 x 50 x 20 mm
• Connection / coupling: M10 thread
