Compression load cell CO-Y4 + MICRA-M

button type1 mV/Vfor testing machine

Presentation

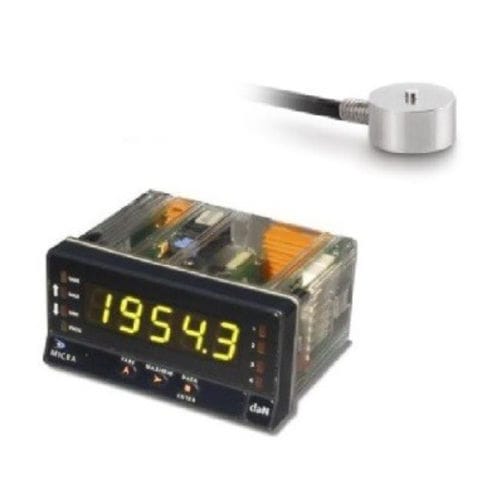

Measurement system composed of a miniature compression sensor CO-Y4 coupled with the MICRA M display/conditioner. Designed for compression tests and measurements on test benches, quality control and R&D. Stainless steel construction and IP67 protection rating suitable for demanding environments.

Main features of the CO-Y4 sensor

• Miniature button-type load cell in stainless steel
• Compression ranges available: 0–50 N and 0–100 N (approximately 0–5 kg and 0–10 kg)
• Protection rating: IP67 (according to EN 60529)
• Output signal: 1 mV/V
• Applications: force and mass measurements on test benches, compression testing

Main features of the MICRA M display

• Multifunction digital display with input configuration
• Compatible inputs: load cells (mV/V, mV), process signals (±10 V, ±20 mA), potentiometer
• Temperature inputs: Pt100 and thermocouples types J, K, T
• Optional analog and digital outputs available
• Power supply: 85–265 Vac / 100–300 Vdc
• Format: 96 x 48 x 60 mm
• Resolution: ±15 bits
• Display update rate: 20 readings/s

Range table
0 to 5 Kg / 50 N
0 to 10 Kg / 100 N

Options and services

• Calibration certificate available as option: COFRAC, COFRAC equivalent or COFRAC linked calibration

Technical specifications

• Sensor type: miniature button compression sensor (CO-Y4)
• Construction: stainless steel
• Available ranges: 0–50 N, 0–100 N
• Protection rating: IP67
• Sensor output: 1 mV/V
• Display: MICRA M multifunction
• MICRA M inputs: mV/V, mV, ±10 V, ±20 mA, potentiometer, Pt100, thermocouples (J, K, T)
• Outputs: optional analog and digital outputs on request
• MICRA M power: 85–265 Vac / 100–300 Vdc
• MICRA M dimensions: 96 x 48 x 60 mm
• MICRA M resolution: ±15 bits
• Reading frequency: 20 /s
