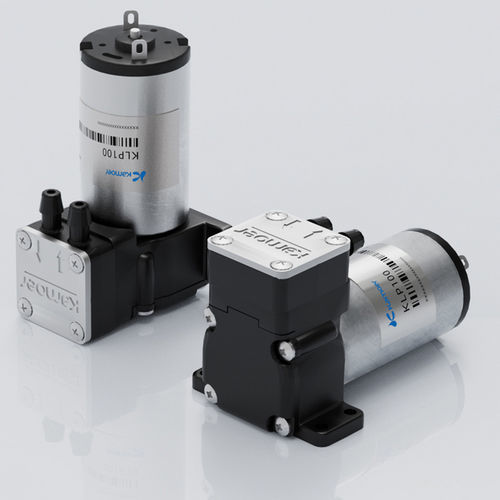

Diaphragm pump KLP100 seriesairbrushless DCself-priming
Add to favorites
Compare this product
Characteristics
- Fluid
- air
- Operation
- brushless DC
- Priming
- self-priming
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- transfer
- Voltage
- 24 V, 12 V
- Other characteristics
- standard, filter, mini pump, brushless
- Flow
Max.: 0.25 l/min
(0.06604 us gal/min)Min.: 0 l/min
(0 us gal/min)- Pressure
Max.: 0.4 MPa
Min.: 0 MPa
- Head
30 m
(98'05" )- Power
5 W
(0.01 hp)- Weight
75 g, 80 g
(2.65 oz, 2.82 oz)
Description
KLP100 Mini Diaphragm and Air Pump Liquid Transfer 12V/24V DC
Brush/brushless Diaphragm Pump
Supplementary instructions
The above parameters are tested at standard atmospheric pressure, room temperature 25°C, and the medium is air.
Measured at a distance of 50cm under ambient noise of 35dB
The performance parameters of the product are affected by environmental conditions (air pressure, temperature, humidity, etc.), medium conditions (temperature, density, viscosity, chemical properties, etc.) and the load before and after the pump, so the above parameters may be different from the actual parameters.
Optional accessories
Vacuum pump filter: 6mm
PWM speed control board: 2405.2
PU: ID4mmxOD6mm
Silicone: ID4mmxOD6mm
PVC: ID4mmxOD6mm
