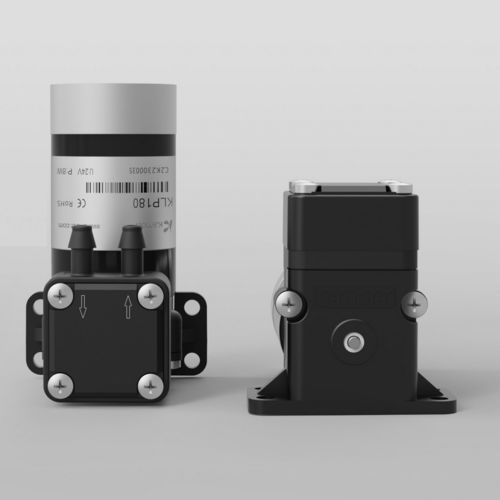

Diaphragm pump KLP180 series
wastewaterfor chemicalswith brushless DC motor

diaphragm pump
diaphragm pump
diaphragm pump
diaphragm pump
diaphragm pump
diaphragm pump
diaphragm pump
Add to favorites
Compare this product


Characteristics

Fluid
wastewater, for chemicals
Operation
with brushless DC motor
Priming
self-priming
Technology
diaphragm
Mobility
stationary
Domain
industrial, medical
Applications
control, service, treatment, reverse, adjustment
Material
EPDM
Voltage
24 V, 12 V
Other characteristics
compact, small, flow, line, PWM
Flow

0.16 l/min, 0.24 l/min
(0.04227 us gal/min, 0.0634 us gal/min)

Pressure

0.02 MPa, 0.3 MPa
(0.29 psi)

Power

6 W
(0.01 hp)

Fluid temperature

Min.: 0 °C
(32 °F)

Max.: 40 °C
(104 °F)

Length

58 mm
(2 in)

Width

25 mm
(0.98 in)

Height

40 mm
(1.57 in)

Description

KLP180 series diaphragm pumps are available in 24V and 12V voltages The product is small in size, high in pressure and stable in chemical properties, suitable for various working conditions Motors are optional, either cost-advantaged brushed motors or performance-advantaged brushless motors High-quality engineering plastics and rubber materials, showing good product stability A variety of rubber options, compatible with the vast majority of media on the market Applications Environmental protection industry: such as use as a pump for liquid monitoring Medical devices: if used as a reagent transfer pump Filling industry: as a transfer pump for filling liquids Coding industry: For example, it is used as a transmission pump of the inkjet printer Performance Feature 1. Self-priming, Support Idling 2. Low Power Consumption 3. Available Corrosive Liquid 4. Long Service Life 5. Compact Structure 6. Low Noise 7. Small Size Basic Parameters Voltage: 12V/24V Motor:Brush/Brushless Motor Power: ≤6W Flow: ≥160ml/min Liquid pressure: 0.3Mpa Negative Pressure: 0.02Bar Diaphragm Material: EPDM or FPM (Before your ordering, please contact customer service to confirm the diaphragm material, otherwise, we'll choose EPDM automatically.) Noise: ≤ 58dB ​Life time: Brush-500H; Brushless-5000H Working environment: Temperature 0~40℃ Relative humidity: less than 80% Multiple Applications Labortory, Wastewater Treatment Inkjet Printing, Liquid Dispensing Medical Equipment, Industrial Equipment
