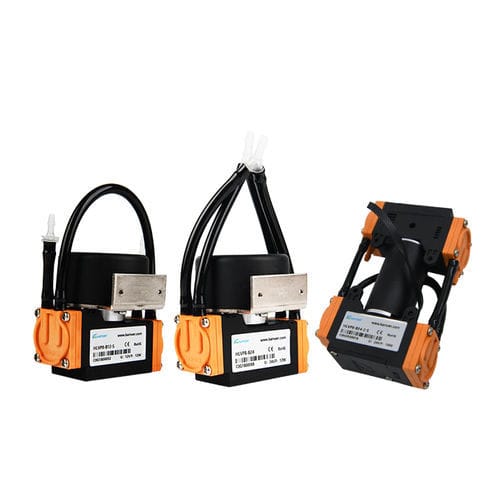

Diaphragm pump HLVP8for chemicalswith brushless DC motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for chemicals
- Operation
- with brushless DC motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, chemical
- Material
- EPDM
- Voltage
- 24 V, 12 V
- Protection level
- maintenance-free
- Other characteristics
- double, large, dry, brushless
- Flow
8 l/min
(2.11338 us gal/min)- Pressure
1 bar
(14.504 psi)
Description
★ Long life ★ Brushless motor ★ Wide application ★ Maintenance-free ★ Large flow ★ Chemical stability ★ Dry running
Basic Parameters
▲ HLVP8 Voltage: 12V/24V Motor: (HLVP8-Outer rotor) brushless motor Flow: More than 360L/H Positive pressure: More than 0.1Mpa(in parallel) Negative pressure: More than 0.09Mpa(in series); More than 0.07Mpa(in parallel) Diaphragm material: EPDM Lifetime: 6000H Noise: Less than 72dB ▲ HLVP8-2 Voltage: 12V/24V Motor: Brushless motor Flow: More than 270L/H(D) Positive pressure(Double head) More than 0.1Mpa Negative pressure(Double head) More than 0.098Mpa Diaphragm material: EPDM Lifetime: 5000H (Double head) Noise: Less than 75dB
Various Applications
Packing List
1 × HLVP8/HLVP8-2 (12V/24V; in parallel/in series).
