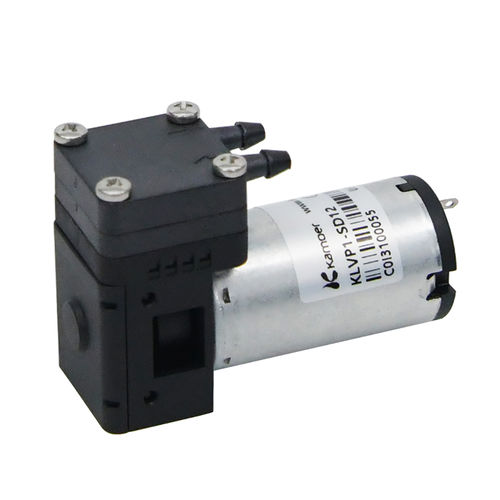

Diaphragm vacuum pump KLVP1 series

oil-free12VAC24VAC

KLVP1 series diaphragm air pumps are available in 24V and 12V voltages The appearance of the product is personally checked by the design master, and it is beautiful and generous Oil-free, maintenance-free, 24h uninterrupted work Motors are optional, either cost-advantaged brushed motors or performance-advantaged brushless motors Low noise, low power design High-quality engineering plastics and rubber materials, showing good product stability Applications Environmental protection industry: such as use as a gas pump for gas monitoring Medical equipment: such as used as an air pump for a rehabilitation instrument Industrial automation: as a negative pressure pump for suction cups White goods: such as use as a negative pressure pump for a massager ★ High-quality engineering plastics, stable and reliable ★ EPDM diaphragm & valve disc ★ Simple design, beautiful and generous ★ High performance, brushless motor, Surging power, enduring Basic Parameters Voltage: 12V/24V Motor: Brushless motor Power: 2W Fluid medium: Air, general gas Air flow: 1-1.5L/min Positive pressure: 0.08Mpa Negative pressure: 0.05Mpa Diaphragm material: EPDM & valve disc Lifetime: 6000H Working temperature: 0~40℃ Humidity: Less than 60%(no condensation water) Noise: 60dB Number of pump head: Single head Various Applications # Laboratory # Gas Analysis # Automated Industry # Environmental monitoring Note: This pump is suitable for many technical fields, especially the field of gas detection. Packing List 1 × KLVP1(12V/24V). Precatution Please use pre-filtering, after the pump sucks in excessive dust, the parameters will drop significantly.
