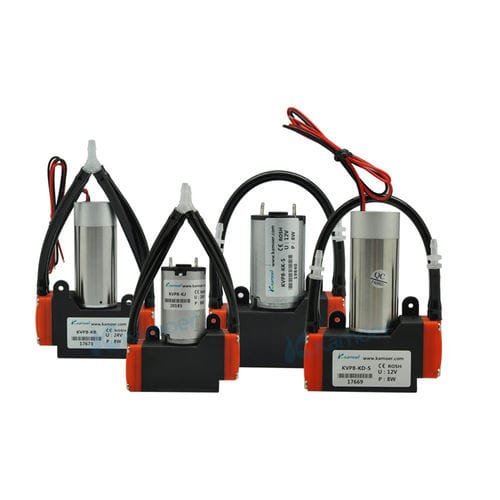

Diaphragm vacuum pump KVP8 drysingle-stagebrushless DC
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Lubrication
- dry
- Number of stages
- single-stage
- Other characteristics
- brushless DC
- Ultimate vacuum
190 mbar
(2.76 psi)- Flow rate
8 l/min
(2.11 us gal/min)- Operating temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)- Length
76 mm
(3 in)- Width
31 mm
(1.22 in)- Height
91 mm
(3.58 in)- Noise level
68 dB
Description
diaphragm air pumps are available in 6V, 24V and 12V voltages
The product is small and powerful
Series negative pressure≤-0.082Mpa, parallel negative pressure≤-0.06Mpa
High-quality engineering plastics and rubber materials, showing good product stability
Dry running, durable and maintenance free
Flow rate≥480L/H
Applications
Environmental protection industry: such as use as a gas pump for gas monitoring
Medical equipment: such as used as an air pump for a rehabilitation instrument
Industrial automation: as a negative pressure pump for suction cups
White goods: such as use as a negative pressure pump for a massager
