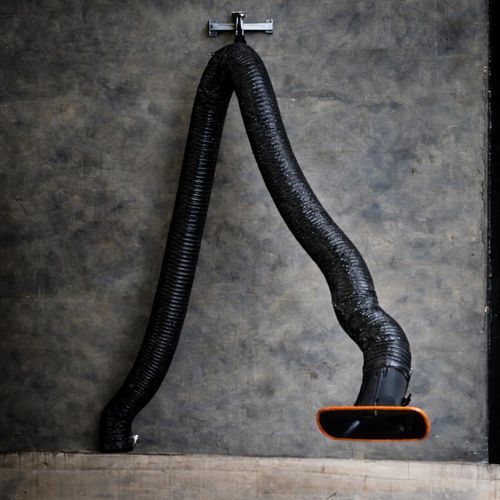

Fixed extraction arm 79 052

flexibledustsmoke

Summary
Extraction arm for workbenches or existing extraction units. The KEMPER extraction arm is designed for retrofit mounting to existing extractors, installation on workbenches or other extraction fixtures. Built for continuous operation and suitable for high volumes of welding fumes, gases, vapours, light dust and vehicle exhaust.

Main features

• For existing extraction units
• Continuous operation
• Mounting on workbenches
• Connectable to extraction systems
• Hanging arm for stationary units
• Standing arm for mobile units
• Suitable for welding fumes, gases, vapours and light dust

Operation and handling
The arm provides a smooth mechanism for effortless positioning at the workstation with high mobility and reduced operator strain. Flexible adjustment allows fast work, the hood is operable with one hand, and an internal carrier frame holds the chosen position. The hood's flow-optimised design reduces arm repositioning by up to 40%.

Configuration

• Mounting types: hanging or standing
• Available lengths: 2 m, 3 m, 4 m

Technical specifications

• Article no.: 79053
• Brand: KEMPER
• Extraction arm diameter: 150 mm
• Length: 3000 mm
• Weight: 21 kg
• Price (excl. VAT): 864.00 EUR
