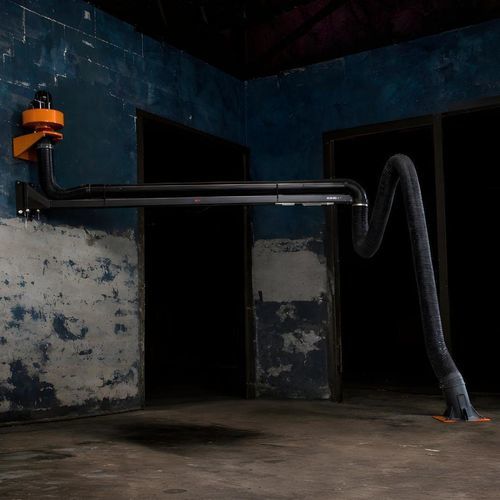

Fixed extraction arm 792052031

flexiblerigiddust

Product description
Exhaust Set Eco is a filterless welding smoke exhaust system comprising an extraction arm and a fan, designed to remove welding fumes, gases, vapours, light dusts and vehicle exhausts in continuous operation.

Main features

• Filterless exhaust solution
• Available arm types: flexible hose or rigid metal tube
• Operating range up to 7 m (arm length configurable: 5 m, 6 m, 7 m)

Highlights
The Exhaust Set Eco provides a simple, cost-effective extraction option where air filtration is not required. It is suitable for high levels of smoke and dust in industrial welding and maintenance environments.

Performance and usability

• Quiet, energy-efficient operation with eco fans and optimized airflow
• Hood movable with one hand for easy positioning
• Self-supporting arm design holds position without external support
• Flow-optimized hood reduces the need for repositioning
• Designed to comply with current and forthcoming EU standards

Options / Configurator

• Arm type: Flexible hose arm or Rigid metal tube arm (rigid metal tube arm default)
• Arm length: 5 m, 6 m (default), 7 m
• Power supply: 1 x 230 V / 50 Hz (default) or 3 x 400 V / 50 Hz

Technical specifications

• SKU: 797062031
• Model name: Exhaust Set Eco
• Motor power: 0.8 kW
• Sound pressure level: 65 dB(A)
• Number of joints: 2
• Extraction arm diameter: 150 mm
• Arm length (mm): 4000
• Boom length: 2 m
• Overall length: 6 m
• Weight: 91 kg
• Extraction capacity: 1100 m³/h
• Maximum negative pressure: 2020 Pa
