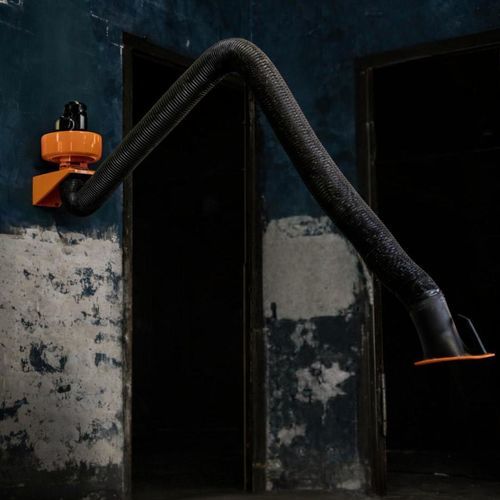

Wall-mounted fume extractor 790022031

weldingwith extraction armextendable

Product description
Fume extraction set with extraction arm and fan. The Eco extraction set, consisting of an extraction arm and a fan, is a simple and cost-effective solution where air filtration is not mandatory. Suitable for large volumes of smoke and light dust such as welding fumes, gases, vapours or vehicle exhausts in continuous operation.

Highlights

• Filterless extraction solution
• Reach up to 4 m (arm length 2–4 m)
• Hose version (rigid duct option available)
• Quieter and more energy-efficient thanks to Eco fans with optimized flow technology
• Easy one-hand hood adjustment
• Maintains set position via internal support linkage
• Flow-optimized hood design "The Hood" reduces repositioning
• Designed to meet upcoming EU requirements

Configuration / variants

• Versions: hose or rigid duct
• Supply voltage: 1 x 230 V / 50 Hz or 3 x 400 V / 50 Hz
• Extraction arm length: 2 m, 3 m or 4 m (4 m selected)

Technical specifications

• Motor power: 0.8 kW
• Sound pressure level: 64 dB(A)
• Extraction arm diameter: 150 mm
• Arm length: 4000 mm (4 m)
• Weight: 48 kg
• Airflow: 1100 m³/h
• Max. negative pressure: 1900 Pa
