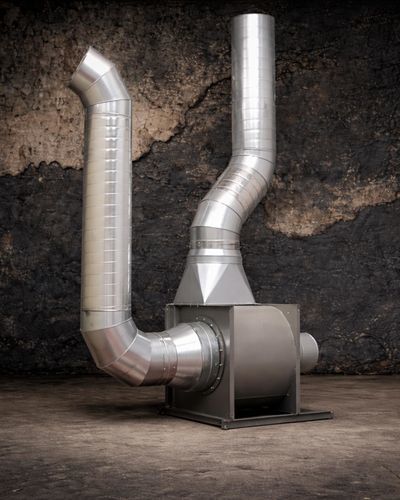

Duct fan 921 0360 130

high-flowcentrifugalextraction

Product description
Central extraction fan for capture of welding fumes and cutting dust when large air volumes must be moved. Designed for operation with ductwork connected to extraction tables, hoods and extraction arms. Intended for ventilation where air filtration is not required.

Applications / benefits

• For extraction tables, extraction hoods and extraction arms
• High volumes of smoke and dust
• Continuous operation

Highlights
Industrial fan solution for extraction tables, hoods and duct systems. Central fans are suited where large air flows are necessary and are typically installed with a network of ducts. Use when ventilation is needed without integrated filtration.

System integration
Easy integration into existing ductwork and extraction systems. Cost-effective extraction solution without integrated air filtration.

• Lower capital expenditure due to operation without air filters

Variants / configuration

• Extraction capacity (options): 2000 - 4000 m³/h; 3000 - 5000 m³/h; 4000 - 7000 m³/h (selected); 6000 - 9000 m³/h; 6000 - 10000 m³/h
• Supply voltage (options): 3 x 400 V / 50 Hz; 3 x 460 V / 60 Hz (selected)

Technical specifications

• Weight: 70 kg
• Motor power: 4 kW
• Rated current: 8.1 A
• Max. fan capacity: 7000 m³/h
• Extraction capacity: 7000 m³/h
• Max. negative pressure: 1920 Pa
• Connection Ø: 400 mm
