Duct fan 92 215 100

centrifugalexhaustventilation

Overview

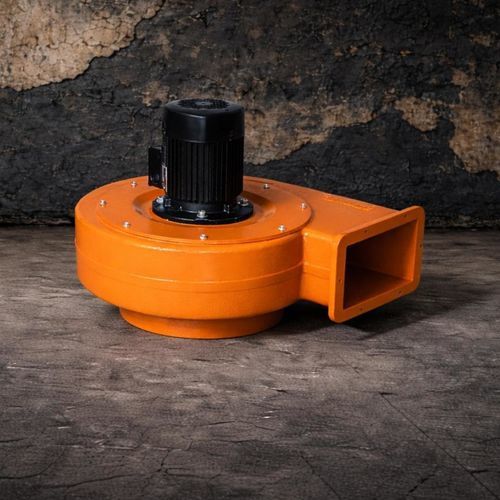

The KEMPER Fan Eco is an energy-efficient extraction fan designed for connection to extraction arms, telescopic arms, suction hoses, stationary units and central air systems. It provides high extraction capacity with reduced energy consumption, spark protection and a corrosion-resistant aluminium housing.

Use cases

• Integration with extraction and telescopic arms, suction hoses, stationary systems and central air technology
• Removal of high concentrations of smoke and particulate emissions
• Suitable for continuous operation in production and workshop environments

Highlights

• Improved energy efficiency: up to 50% more efficient compared with previous generations
• Compliant with upcoming EU Ecodesign requirements
• Lower sound levels for a quieter working environment
• Durable construction: airflow-optimized design and robust aluminium housing
• Spark protection suitable for applications with hot particles
• Available in multiple power/performance classes

Configuration options

• Extraction capacity (configurable): 650–1250 m³/h; 750–1700 m³/h; 900–1900 m³/h (default: 900–1900 m³/h)
• Power supply options: 1 × 230 V / 50 Hz (selected) or 3 × 400 V / 50 Hz
• Variant sizes: L, M, XL (selected: XL)

Technical data
Connections
Connection nozzle Ø in mm: 160

Performance
Negative pressure in Pa: 2100, 1050
Extraction capacity in m³/h (typical): 1440
Max. negative pressure in Pa: 1050
Max. extraction capacity in m³/h: 1900
Min. extraction capacity in m³/h: 900

Dimensions
Weight in kg: 24

Technology
Motor power in kW: 1.1
Sound pressure level in dB(A): 70

Characteristics / specifications

• Brand: KEMPER
• Model name: Fan Eco
• Connection nozzle diameter: 160 mm
• Extraction capacity range: 900–1900 m³/h (configured option shown: 900–1900 m³/h)
• Typical extraction capacity: 1440 m³/h
• Negative pressure values: 2100 Pa, 1050 Pa (max. 1050 Pa)
• Motor power: 1.1 kW
• Weight: 24 kg
• Sound pressure level: 70 dB(A)
• Power supply: 1 × 230 V / 50 Hz or 3 × 400 V / 50 Hz
• Available sizes: L, M, XL
• Design features: airflow-optimized housing, robust aluminium casing, spark protection, low wear for extended service life
