Fixed extraction arm 79 002 100

flexibledustwelding fume

Overview

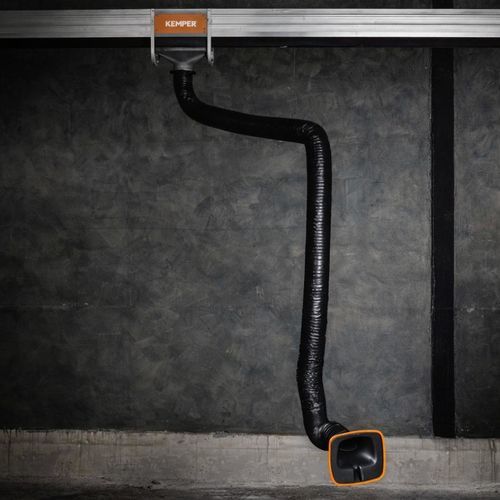

Flexible welding-fume capture arm mounted on a slotted suction duct, offering long reach and 360° mobility for precise extraction of welding fumes, gases, vapours and light dusts in continuous industrial use.

Key features

• For connection to fans or central extraction systems
• Handles high volumes of smoke and particles
• Designed for continuous industrial operation
• Suitable for welding fumes, gases, vapours and light dusts
• Adapted for large workpieces and wide coverage

Highlights
Optimised extraction with flexible trolley guidance: exhaust arms on the extraction channel combine a long reach with simple, smooth positioning. Multiple arms can be connected to a single duct; units are built for continuous use and heavy smoke/dust loads.

Precise extraction
Extended reach, 360° mobility and ergonomic operation reduce repositioning and speed up tasks. Key benefits:

• Fast operation due to long reach and 360° adjustment beneath the carriage
• Up to 40% less repositioning required thanks to the flow-optimised hood design
• One-hand operation due to smooth hood movement
• Self-supporting design holds the arm in position without additional supports

Available options

• Exhaust arm lengths: 2 m (standard), 3 m, 4 m

Technical specifications

• Extraction arm diameter: 150 mm
• Length: 2000 mm (standard 2 m)
• Weight: 17 kg
• Hose: polyester with PVC coating, steel-reinforced spiral
• Intended use: continuous industrial extraction of welding fumes, gases, vapours and light dusts
• SKU: 79002100
