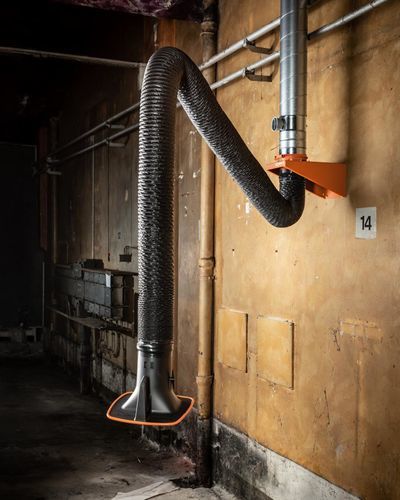

Wall-mounted extraction arm 79002

flexiblerigidfor smoke

Product overview
The KEMPER welding smoke extraction arm is a workstation extraction solution designed for targeted removal of welding fumes, gases, vapours, light dust and vehicle exhaust. It can be connected to a fan or to a central extraction and filtration system and is suitable for continuous operation in environments with high fume and particle loads.

Key features

• Connection to fans or central extraction systems
• Suitable for high concentrations of smoke and particles
• Designed for continuous (non‑stop) operation
• Effective for welding fumes, gases, vapours and light dusts
• Wall bracket included

Highlights
Efficient localized extraction for single or multi‑user workstations. The arm offers smooth one‑hand positioning and a highly flexible range of movement. The optimized hood reduces adjustment travel by up to 40% while the self‑supporting internal structure keeps the arm in position.

Advantages / usability

• Efficient extraction with high positioning flexibility
• Fast operation due to particularly flexible adjustment
• Approx. 40% less repositioning required thanks to aerodynamic hood design
• Ergonomic one‑hand movement of the hood
• Self‑supporting design holds position without external support
• Multiple connection options: direct to fans, to stationary units, or via ducting to central systems

Options / configuration

• Versions: flexible hose arm or rigid metal tube arm
• Available lengths: 2 m, 3 m, 4 m

Technical specifications

• Number of joints: 1
• Extraction arm diameter: 150 mm
• Length: 3000 mm (3 m version shown; other lengths available: 2 m, 4 m)
• Weight: 20 kg
• Mounting: wall bracket included
