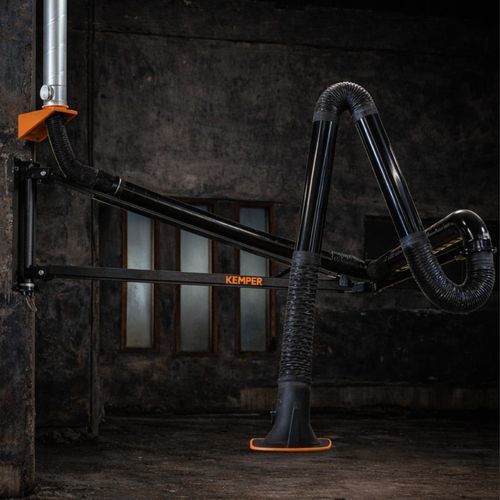

Fixed extraction arm 79 307

flexibledustsmoke

Overview
The KEMPER exhaust arm provides extended reach for fume and dust extraction. It can be used at a single workstation with a fan or in multi-station configurations connected by ducting to a central extraction and filtration system. Designed for continuous operation, it is suitable for high concentrations of welding fumes, gases, vapours, light dusts and vehicle exhaust.

Summary
Flexible operation — exhaust arms available with overall reach up to 8 m; standard overall reach 7 m.

Applications

• Connection to fans or central extraction systems
• High levels of smoke and particles
• Continuous (non-stop) operation
• Welding fumes, gases, vapours, light dusts, vehicle exhaust
• Large workpieces and multi-user workstations

Highlights / Benefits

• Efficient extraction of smoke and harmful substances at workstations
• Smooth one-hand positioning and stable self-supporting design
• Reduced tripping hazard by attaching tools or wire-feed units to the boom with carriage
• Up to 40% less repositioning thanks to flow-optimised hood design
• Quick operation due to long reach and high adjustability
• Multiple connection options: fan, stationary units or ductwork to central systems

Technical data
Number of joints: 3
Extraction arm diameter: 150 mm
Arm section length: 3000 mm
Weight: 142 kg
Boom length: 4 m
Overall reach / overall length: 7 m

Characteristics / Technical specifications

• Number of joints: 3
• Extraction arm diameter: 150 mm
• Length (single arm section): 3000 mm
• Weight: 142 kg
• Boom length: 4 m
• Overall reach: 7 m (also available: 8 m)
• Suitable for welding fumes, gases, vapours, light dusts and vehicle exhaust
• Designed for continuous operation
• Flexible mounting and connection options: fan connection, central extraction/filtration, ductwork
