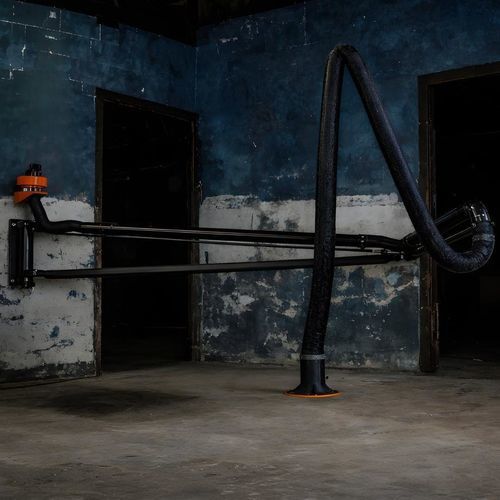

Wall-mounted fume extractor 79 409 201

weldingwith extraction armdust

Product overview
Welding fume exhaust set combining an extraction arm and fan. Cost-effective solution where filtration is not required; designed for high smoke and particle loads and continuous operation.

Main applications

• High levels of smoke and particles
• Continuous, non-stop operation
• Situations where air filtration is not essential
• Welding fumes, gases, vapours and light dusts

Highlights

• Lower noise and improved efficiency with new eco fans and optimized airflow technology
• Smooth, one-hand hood movement for user-friendly positioning
• Arm holds position due to self-supporting internal support structure
• Flow-optimized hood design reduces need for adjustment of the extraction arm
• Compliant with current and forthcoming EU standards

Configurator options

• Arm type: Flexible exhaust arm or rigid metal tube arm
• Length of exhaust arm: 7 m, 8 m, 9 m, 10 m
• Power supply: 1 x 230 V / 50 Hz or 3 x 400 V / 50 Hz

Technical data
Weight (kg): 235
Length (mm): 3000
Boom length (m): 6
Overall length (m): 9
Diameter (mm): 150
Extraction arm diameter (mm): 150
Motor power (kW): 0.8
Number of joints: 3
Sound pressure level (dB(A)): 65
Extraction capacity (m³/h): 1100
Max. negative pressure (Pa): 1930

Characteristics / technical specifications

• Item No. (SKU): 794092011
• Model: Exhaust Set Eco
• Weight: 235 kg
• Length (unit): 3000 mm
• Boom length: 6 m
• Overall length: 9 m
• Connection diameter: 150 mm
• Extraction arm diameter: 150 mm
• Motor power: 0.8 kW
• Number of joints: 3
• Sound pressure level: 65 dB(A)
• Extraction capacity: 1100 m³/h
• Max. negative pressure: 1930 Pa
