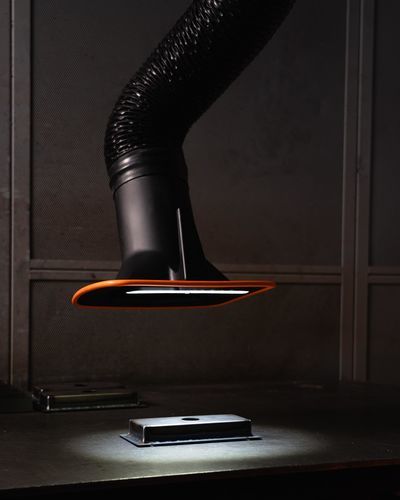

Dust removal extractor hood 79105

wall-mounted

Overview
Local extraction hood for welding fumes with TouchControl, integrated lighting and an enlarged capture area. Designed for precise capture of fumes and particles directly at the source; compatible with KEMPER units and wall-mounted extraction arms.

Applications

• Local extraction of welding fumes and particles directly at the source

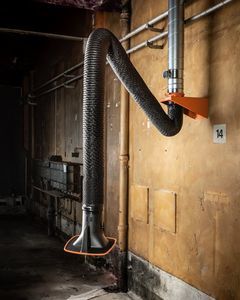

• Use on KEMPER units with extraction arm and lighting or on wall-mounted extraction arms with an additional transformer box
• Compatible with automatic start-stop systems (double-tap on the right controls the automatic system)
• Suitable for industrial welding workstations

Key features

• TouchControl: double-tap on the hood frame to control extraction and lighting; glove-friendly
• Integrated lighting with up to 80% increased luminous efficiency for improved visibility
• Flow-optimised hood shape with over 60% more extraction area for enhanced capture performance
• Directed light guidance highlighting the extraction zone for greater safety and reduced repositioning
• Tool-free focus lens replacement in approx. 20 seconds
• Lighting positioned outside the airflow for minimal maintenance and consistent extraction performance
• Plug & Play: quick installation of the connection cable; suitable cable sets available separately
• Tap & Go operation without switches enabled by TouchControl

Technical data
Weight: 2 kg
Depth: 361 mm
Width: 287 mm
Height: 416 mm
Luminous flux: 501.93 lm
Swivel angle: 360°
Suction field: 360°
Connection diameter: Ø 150 mm

Specifications

• Item number (SKU): 79105
• Control: TouchControl (double-tap) for extraction and lighting
• Designed for spot extraction of welding fumes and particles
