Fixed extraction arm 79 409

flexibledustsmoke

Summary

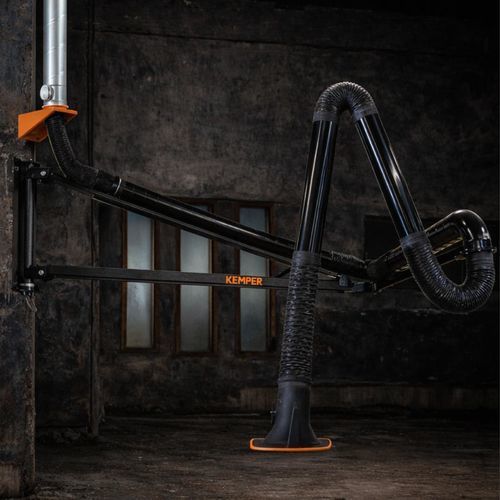

The KEMPER extraction arm with two-part boom provides extended reach for welding fume and dust extraction up to 10 m. Designed for connection to fans or central extraction systems and built for continuous operation with high volumes of fumes and light dusts.

Key features

• Connectable to fans or central extraction systems
• Suitable for large smoke and dust loads
• Designed for continuous operation
• Application: welding fumes, gases, vapours, light dusts, vehicle exhaust
• Adapted for large workpieces

Description / Highlights
The KEMPER extraction arm with two-part boom delivers large coverage for local exhaust of welding fumes and dust. It can be used as a single-station solution with a fan or integrated into multi-station systems via ducting to a central extraction and filter unit. The design supports continuous duty and high pollutant loads commonly found in industrial welding and fabrication environments.

Easy positioning

• Reduced trip hazards through mounting points for tools or wire-feed units on the boom trolley
• Up to 40% less repositioning thanks to an aerodynamically optimised hood design
• User-friendly one-hand operation of the hood
• Maintains set position cantilevered via internal support linkage
• High manoeuvrability allows one-handed positioning and retention
• Fast operation due to long reach and flexible adjustment options
• Multiple connection options to fans, stationary units or central extraction and filtration systems

Technical data
Number of joints: 3
Extraction arm diameter: 150 mm
Segment length: 3000 mm
Weight: 195 kg
Boom length: 6 m
Total reach: 9 m (option 10 m)

Specifications / Technical details

• Model: Absaugarm - zweiteiliger Ausleger
• SKU: 79409
• Available total lengths: 9 m (standard), 10 m (option)
• Arm diameter: 150 mm
• Number of joints: 3
• Boom length: 6 m
• Segment length: 3000 mm
• Weight: 195 kg
• Applications: welding fumes, gases, vapours, light dusts, vehicle exhaust
• Operating mode: designed for continuous duty
• Note: suitable for connection to fans or central extraction systems
