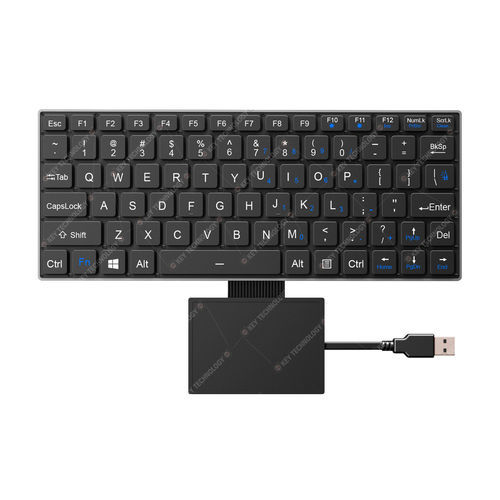

Panel-mount keyboard K-TEK-V268-FN-BL-FC-SC-DWP+TP85-DML

scissor switch80-keywith touchpad

DESCRIPTION: 80 keys IP67 fully dynamic sealed waterproof and durable embedded ultra-thin rugged patented scissor switch keyboard with built-in ultra-thin Flexible Printed Circuit, with fully sealed external waterproof and reinforced wide-temperature touchpad with 400 DPI resolutions for fast cursor position. 12 function keys (F1, F2, ... F12) are on top line for easy operation. It adopts scissor switch technology with 1.20mm±0.10mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, there will be no key value missing, no stuck key or repeat output during the keyboard operation, with durable coating & anti-microbial keyboard surface withstand most chemicals and liquids under harsh environment. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid mis-operation or mis-typing. Adjustable white backlight included, panel mount solution. Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.) as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity; MIL-STD-461G-EMC-EMI-EMS-ESD (optional). Patented keyboard (Patent number: 202422198937.6)Dimensions: Keyboard: 268.0mm x 108.0mm (L x W), TouchPad: 86.0mm x 61.0mm (L x W)MECHANICAL DATAKey80 keysKey switchRugged scissor switch technologyKey travel1.20mm ±0.10mmKey life spanmore than 5 million operationsActuation Force0.8N ±0.2NELECTRICAL DATASupply VoltageDC +5V±5%Current Rating≤30mA when backlight is off, ≤300mA with backlight onEMC StandardEN 55032:2015, EN 55035:2017Lifespan> 5 yearsInterfaceUSBOSAll Windows, Linux, Unix, Mac OSX, Vxworks, AndroidENVIRONMENTAL ADAPTABILITYOperating temperature-40℃ to +60℃Storage temperature-50℃ to +70℃Humidity test1. Test temperature: 30℃~60℃,2. Test humidity: 95%RH,3. Test period: 24h as a cycle, 10 cycles, total 240hAtmospheric pressure57kPa~106kPaVibration test0~5.1Hz, displacement 1mmShock test1. Pulse waveform: post-peak sawtooth wave2. Peak acceleration: 40g3. Pulse duration: 11ms4. Test period: X,Y, Z triaxial, 3 times impact to each axial front and back, a total of 18 timesTemperature shock test1. Test temperature: -50℃~70℃2. Test period: -50℃ for 2h, 70℃ for 2h, 3 cycles, a total of 12hFungus test1. Test temperature: (30±1) ℃2. Relative humidity: (95±5) %RH3. Test strains: Aspergillus flavus, Aspergillus variegatus, Penicillium cordylus, mucocellus globularis, Aspergillus Niger4. Test period: 28 days (672 hours)Salt spray test1. Place the sample into the Salt Spray Corrosion Test Chamber, temperature inside the chamber is 35 ℃; Spray the sample with a NaCl test solution with a concentration of 5 ± 1% and a PH value of 6.6 for 24h at a pressure of 96kPa; Test duration is 24 h.2. After 24h of spray, dry and store the sample for 24h in an environment with temperature of 23 ℃ and humidity of 50%;3. Steps 1-2 as one cycle, test for 2 cycles, total 96 h.4. After the test, exhaust the fog for 10 min, check the sample after cleaning it with flowing water under standard atmospheric conditions.Rain test1. Test procedure: Procedure - rainfall and blowing rain2. Test direction: keyboard surface3. Wind velocity: no less than 18 m/s4. Test duration: 3hDust test1. Test procedure: Procedure - Dust Blowing2. Dust content: 10.6g/m³±7g/m³3. Firstly conduct dust blowing for 6h under 23°C, then adjust the temperature to 60°C and stabilize for 1h, and then re-conduct dust blowing for 6h.Transport package drop test1. Test procedure: Transport Drop Test2. Sample state: Weight≤45.4kg, Maximum Size<91.0cm;3. Drop height: 122cm;4. Drop count: drop to each surface, edge and corner, 26 times of drop totally.RELIABILITYRoHS compliant, CE and FCC certifiedMIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration (Transport packaging vibration, working vibration 5.1Hz), shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.)Protection LevelIP67 (front panel)Lifespan>5 yearsMTBF>20000HMTTR<30minAPPLICATIONVehicle, aerospace, naval, maritime, Radar, display console, portable rugged laptop, UAV ground station etc.Category: DWP Scissors Switch KeyboardKey Number: 80 keysKey Travel: 1.20mm±0.10mmBacklight: WhiteInterface: USBKey Switch: Carbon contact + FPC carbon-on-gold key switch technologyProtection Level: IP67 (front panel)Mounting Solution: Panel mountOperating Temperature: -40ºC to +60ºCApplication: Vehicle, aerospace, naval, maritime, Radar, display console, portable rugged laptop, UAV ground station etc.
