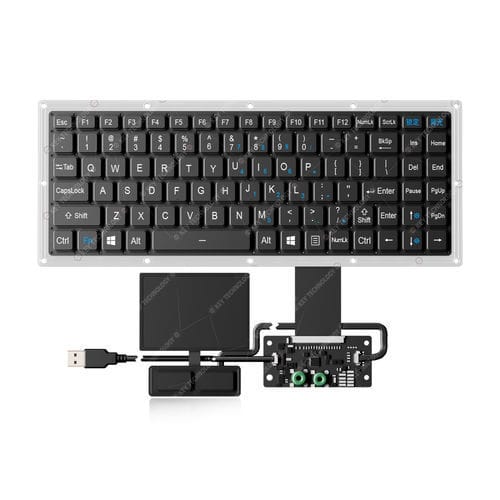

Panel-mount keyboard K-TEK-V315-FN-BL-FC-PR-ANA-151B-DWP+TP85+2K

scissor switchwith 2 mouse keyswith Fn key

Overview
92-key ultra-thin rugged patented scissor-switch keyboard with built-in ultra-thin flexible printed circuit, fully sealed waterproof front panel (IP67) and reinforced wide-temperature touchpad (400 DPI) with two mouse buttons. Adjustable white backlight and FN+Clean cleaning mode. Designed to meet MIL-STD-461G and MIL-STD-810H environmental and EMI/EMC standards. Patent: 202422198937.6

Main features

• 92 keys + 2 mouse buttons
• Fully sealed, waterproof front panel (IP67)
• Rugged scissor-switch technology with ultra-thin profile
• Built-in ultra-thin Flexible Printed Circuit (FPC)
• Reinforced wide-temperature touchpad, 400 DPI, 2 mouse buttons
• 12 function keys (F1–F12) on top line
• Adjustable white backlight
• Panel-mount solution
• Durable coating & anti-microbial surface
• FN + Clean combination keys for cleaning without removal

Dimensions
Keyboard: 332.0 mm x 130.2 mm (L x W)
TouchPad: 86.0 mm x 61.0 mm (L x W)

Mechanical data (summary)
Key: 92 keys + 2 mouse buttons
Key switch: Rugged scissor-switch technology
Key travel: 1.20 mm ±0.10 mm
Key life span: >5 million operations
Actuation force: 0.8 N ±0.2 N

Electrical data (summary)
Supply voltage: DC +5V ±5%
Current rating: ≤30 mA (backlight off); higher when backlight on as specified in electrical data
Lifespan: >5 years
Interface: USB
OS compatibility: Windows, Linux, Unix, Mac OSX, VxWorks, Android

Standards & Environmental
Designed and tested to MIL-STD-461G (EMC/EMI/EMS/ESD) and MIL-STD-810H (temperature extremes, low pressure, humidity, vibration, shock, rain, salt fog, dust, fungus, solar radiation, etc.).

Description (detailed)
92-key, IP67 fully sealed rugged scissor-switch keyboard with integrated ultra-thin FPC. The reinforced wide-temperature touchpad (400 DPI) and two mouse buttons provide fast cursor control. Scissor-switch keys deliver 1.20 mm ±0.10 mm travel with clear tactile feedback for accurate, low-noise data entry. Keycaps are pry-resistant to prevent missing, stuck, or repeated inputs. Durable coating and anti-microbial surface resist common chemicals and fluids in harsh environments. FN + Clean enables cleaning without removing the keyboard from equipment. Adjustable white backlight and panel-mount form factor. Engineered to meet stringent military reliability, safety and environmental requirements.

Technical specifications

• Model family: K-TEK V315 (see commercial model field)
• Category: DWP Scissor Switch Keyboard
• Keys: 92 keys + 2 mouse buttons
• Key travel: 1.20 mm ±0.10 mm
• Actuation force: 0.8 N ±0.2 N
• Key life span: >5 million operations
• Backlight: White, adjustable
• Interface: USB
• Protection level (front panel): IP67
• Mounting solution: Panel mount
• Operating temperature: -40°C to +60°C
• Storage temperature: -50°C to +70°C
• Touchpad: 86.0 mm x 61.0 mm, 400 DPI
• Supply voltage: DC +5V ±5%
• Current: ≤30 mA (backlight off); higher when backlight on
• Compatibility: Windows, Linux, Unix, Mac OSX, VxWorks, Android
• Standards: MIL-STD-461G, MIL-STD-810H; RoHS, CE, FCC (as applicable)
• Patent: 202422198937.6
• Dimensions (Keyboard): 332.0 mm x 130.2 mm (L x W)
• Dimensions (TouchPad): 86.0 mm x 61.0 mm (L x W)
