Panel-mount keyboard K-TEK-V405TP-FN-BL-FC-SC-ANA-151B-BT

scissor switchwith Fn key86-key

Overview

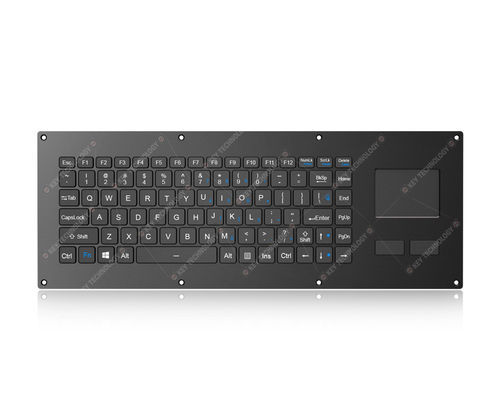

86 keys IP67 fully sealed dynamic waterproof and durable embedded ultra thin rugged patented scissor switch keyboard with built-in ultra-thin Flexible Printed Circuit, fully sealed waterproof reinforced wide-temperature touchpad (400 DPI) for fast and accurate cursor positioning, plus 2 left and right mouse buttons and 12 top-line function keys (F1–F12). Utilizes rugged scissor switch technology with 1.20mm ±0.10mm key travel and strong tactile feedback for fast, accurate, and quiet input. High-quality black titanium electroplated stainless steel front plate with sinking holes, durable coating and anti-microbial keyboard surface resistant to most chemicals and liquids. FN + Clean key combination enables easy cleaning without disconnecting the keyboard. Adjustable white backlight included. Designed to meet MIL-STD-461G and MIL-STD-810H standards covering EMC/EMI/EMS/ESD and environmental tests. Patented design (Patent number: 202422198937.6).

Applications
Vehicle, aerospace, naval, maritime, radar, display consoles, portable rugged laptops, UAV ground stations, and other harsh-environment systems.

Dimensions
Front panel: 405.0mm x 150.0mm

Mechanical Data
Key count: 86 keys + 2 mouse buttons
Key switch: Rugged scissor switch technology
Key travel: 1.20mm ±0.10mm
Key life span: More than 5 million operations
Actuation force: 0.8 N ± 0.2 N

Electrical Data
Supply voltage: DC +5V ±5%
Current rating: ≤30 mA when backlight is off; ≤300 mA with backlight on
Interface: USB
Lifespan (electrical): > 5 years
Supported OS: All Windows, Linux, Unix, Mac OS X, VxWorks, Android

MIL-STD-461G (EMC / EMI / EMS / ESD) Tests Covered
1. CE101: 25 Hz - 10 kHz Conducted Emissions, Audio Frequency Currents (power leads)
2. CE102: 10 kHz - 10 MHz Conducted Emissions, Radio Frequency Potentials (power leads)
3. CS101: 25 Hz - 150 kHz Conducted Susceptibility (power leads)
4. CS106: Conducted Susceptibility, Transients (power leads)
5. CS112: Electrostatic Discharge Susceptibility
6. CS114: 4 kHz - 400 MHz Conducted Susceptibility, Bulk Cable injection
7. CS115: Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
8. CS116: 10 kHz - 100 MHz Conducted Susceptibility, Damped Sinusoidal Transients (cables and power leads)
9. RE101: 25 Hz - 100 kHz Radiated Emissions, Magnetic Field
10. RE102: 10 kHz - 18 GHz Radiated Emissions, Electric Field
11. RS101: 25 Hz - 100 kHz Radiated Susceptibility, Magnetic Field
12. RS103: 10 kHz - 40 GHz Radiated Susceptibility, Electric Field

MIL-STD-810H Environmental / Reliability Features
Designed for high/low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, and solar radiation. RoHS compliant, CE and FCC certified.

Environmental Adaptability & Tests
Operating temperature: -40°C to +60°C
Storage temperature: -50°C to +70°C
Humidity test: Test temp 30–60°C; test humidity 95% RH; test period 24 h as a cycle, 10 cycles, total 240 h
Atmospheric pressure: 57 kPa ~ 106 kPa
Vibration test: 0 ~ 5.1 Hz, displacement 1 mm (specified vibration procedure)
Shock test: Pulse waveform: post-peak sawtooth; peak acceleration: 40 g; pulse duration: 11 ms; triaxial impacts (X, Y, Z) as specified (multiple impacts per axis)
Temperature shock test: Cycles between -50°C/ -40°C and +70°C/ +60°C per specified durations
Fungus test: Specified fungal strains; test temp ~30°C; 95% RH; 28 days (672 hours)
Salt spray test: NaCl 5 ±1% at 35°C for cycles as specified; 24 h spray, drying, repeat for cycles (total 96 h described)
Rain test: Rainfall and blowing rain procedure; wind velocity ≥ 18 m/s; test duration 3 h
Dust test: Dust blowing procedure with specified dust concentration and cyclic temperature steps
Transport package drop test: Weight ≤45.4 kg; max size limits; drop height 122 cm; drops to surfaces, edges and corners (26 drops total)

Reliability
Protection level: IP67 (front panel)
Lifespan: > 5 years (design)
MTBF: > 20,000 hours
MTTR: < 30 minutes (design objective)
Certifications: RoHS, CE, FCC; designed to MIL-STD-461G and MIL-STD-810H standards

Patents
Patented keyboard design: Patent number 202422198937.6

Caractéristiques / spécifications techniques

• Model family: K-TEK V405TP
• Category: DWP Scissors Switch Keyboard
• Keys: 86 keys + 2 mouse buttons
• Key travel: 1.20 mm ±0.10 mm
• Key switch technology: Rugged scissor switch
• Backlight: Adjustable white backlight
• Interface: USB
• Protection level: IP67 (front panel)
• Mounting solution: Panel mount
• Operating temperature: -40°C to +60°C
• Storage temperature: -50°C to +70°C
• Touchpad: Fully sealed reinforced wide-temperature touchpad, 400 DPI
• Front plate: Black titanium electroplated stainless steel with sinking holes
• Anti-microbial surface and chemical resistance
• Compliance / standards: MIL-STD-461G, MIL-STD-810H, RoHS, CE, FCC
• Patent: 202422198937.6
• Dimensions (front panel): 405.0 mm x 150.0 mm
